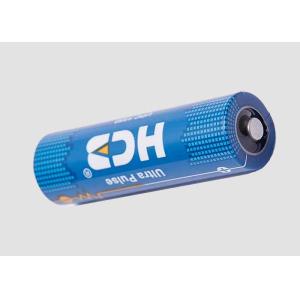

    3.6V ER34615+UPC1550 Cylindrical Li-SOCl2 Battery High Pulse 19000mAh

    Ask Lasest Price
    Brand Name : HCB
    Model Number : ER34615+UPC1550
    Certification : CE/UL/RoHS/UN
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : Two millions units per month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    3.6V ER34615+UPC1550 Cylindrical Li-SOCl2 Battery High Pulse 19000mAh

    3.6V ER34615+UPC1550 Anti Corrosion Non-Rechargeable High Pulse 19000mAh Li-SOCl2 Cylindrical Batteries

    1. Key Features:
    • High Voltage
    Nominal voltage up to 3.0 V
    • High Energy Density
    Specific energy density up to 260 Wh/kg
    • Wide Operating Temperature Range

    -40°C to +85°C

    • High Pulse Capability

    Up to 5A pulse

    • High Reliability

    The UPC is parallel connected with a battery or several batteries to eliminate voltage delay and to increase the pulse current capability
    Low leak current 1~15μA


    2. Applications

    • Utility Metering

    Automatic meter reading(AMR), advanced metering infrastructure(AMI),electricity meters, gas meters, water meters, heat meters, etc.

    • Security

    Smoke detectors, security alarms, seismometers, digital door lock system, etc.

    • Internet of Things

    Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.


    3. Electrical Cha racteristics(T emperature 23±2℃)

    Capaticy at 3.67V 560As
    Cut-off Voltage 2.5V
    Maximum Continuous Discharge Current 2.0A

    Maximum Pulse Discharge Current(1s) 5.0A
    Maximum Charge Voltage 3.95V
    Maximum Charge Current 50mA
    Internal Resistance(1kHz@RT) ≤100mΩ
    Leakage Current@RT 5μA
    Leakage Current@80℃ 15μA


    4. FAQS of General Safety Instructions

    • Which environment is workable to store the battery?

    In order to store the battery, the environment should be dry enough.

    • What kind of case do we need to stop using the battery?

    We need to stop using the battery when the abnormal heat release or leakage occurs.

    • If you have children at home, what should you pay attention when we use our battery?

    The battery should be kept out of the children firstly. If swallowed by children, please contact a physician at once.
