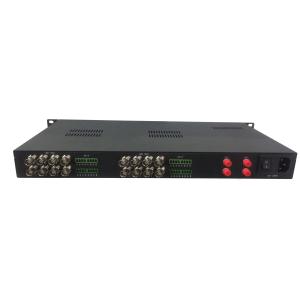

SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet

Name: SDI Fiber Extender with 4ch audio1ch data 1ch Ethernet
Brand: Fiber Linker
Price: 1 USD

Ask Lasest Price
Brand Name :	Fiber Linker
Model Number :	FL3004ADP
Certification :	CE FCC
Payment Terms :	TT in advance
Supply Ability :	300pairs per month
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

SDI Fiber Extender with 4-ch audio,1-ch data, 1-ch Ethernet

1. Overview
Fiber Linker’s HD-SDI Extender over Fiber, HD-SDI Fiber Optic Extenders offer the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.
2. Features
Our HD SDI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution
3. Applications

Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links

4. Ordering Information

SDI Fiber Extender

FL3004ADP : 4-ch HD-SDI/ASI with embedded audio, 4-ch audio, 1-ch data, single fiber, single mode, FC, 20KM, 1U rack mount.

5. Specifications

HD SDI Input		HD SDI Output
channels	4	Channels	4
Signal standard	SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -1.485Gb/s)	Signal level	800mV nominal
Reflection loss	>15DB	Rise/drop time	200ps nominal
equalization	1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable	Reflection loss	> 15dB
connector	75Ω BNC	Overshoot	10% amplitude
Jitter: < 0.2UI

Optic		Others
Channels	1	Transmission distance	20KM
Type	single mode	Operating temperature	-45°C~+50°C
Wavelength	1310nm /1550nm	Power	1A@12VDC
Reflection loss	> 15dB	Average time trouble-free	>100000 hours
Connector	FC/PC (SC/PC optional)	Case	1U rack mount

Audio		Data(optional)
Type	RCA	Channels	2-ch data(terminal block)
Channels	4	Data rate	-+15 dBu
Input/output impedance	600Ω equilibrium	Connector	terminal block
Max. input/output level	＋15 dBu
Frequency Response	20Hz－24KHz,±0.1dB

Application:

Keyword: SDI fiber converter , SDI fiber optical transceiver, SDI fiber extender, SDI fiber transmitter
