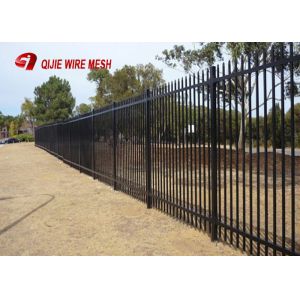

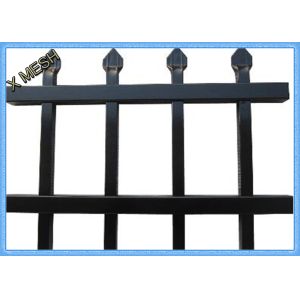

Powder Coated Wire Mesh Fence Panels Pregalvanized Spear Top Security Garrison

25X25mm Powder Coated Pregalvanized Spear Top Security Garrison Fencing

Garrison security fencing is commonly used in industrial and commercial properties, schools, sporting facilities, government infrastructure and many more applications.

FenceWright manufactures its own Garrison fencing, ensuring all Garrison fencing conforms to our stringent quality control processes and checks. FenceWright pre-treats all of its Garrison fencing prior to powdercoating and ensures that powdercoating is carried out in strict accordance with AS/NZS 4506-1998.

Garrison Available in a range of heights, panel widths, specifications and finishes. Standard heights include 1800mm, 2100mm, 2400mm and 3000mm. FenceWright can design and customise garrison security fencing solutions for all of your needs.

FenceWright can offer a wide range colours in powdercoated finishes or alternatively in hot dipped galvanised finish.

Specifications of security fencing:
1. Material: pre-galvanized steel tube.
2. Assembly method: vertical tube passing through the top and bottom rails and welded to the rails by stainless steel welding or silicon bronze welding.
3. Finishing: powder coated, with color of black cream, blue.
4. Package: in pallet.
Custom produce also available upon your request.

1. Panel height
   0.8–3 m.
2. Panel width
   2.4–3.0 m.
3. Rails
   32 × 32, 40 × 40, 45 × 45, 50 × 50, 38 × 38 mm, etc.
4. Rail thickness
   0.8–2.0 mm.
5. Vertical picket
   • Square tube: 16 × 16, 19 × 19, 22 × 22 mm, etc.
   • Round tube: 22 × 22 mm.
   • Oval tube: 12 × 25 mm.
6. Vertical picket thickness
   0.8–1.5 mm.
7. Picket center
   110 mm.
8. Post
   50 × 50, 60 × 60, 65 × 65, 75 × 75, 80 × 80 mm, etc.
9. Post thickness
   1.2–2.0 mm.
10. Hot-dip process

    • Galvanized after forming

      • Zinc coating: ≥ 92 g/m2.
      • Thermo setting coating containing zinc (interior surface): ≥ 0.3 mils.
      • Coverage rate of polymeric coating: ≥ 95%.

    • Galvanized prior to forming

      • Zinc coating for industrial applications: ≥ 276 g/m2.
      • Zinc coating for commercial and residential applications: ≥ 184 g/m2.
      • Polyester/epoxy and polyester combinations coating: ≥ 0.3 mils.
      • Polyolefin elastomer coating: ≥ 7 mils.
      • PVC coating: ≥ 10 mils.
11. Yield strength
    ≥ 310 MPa.
12. Connection type
    Plug-in assembly.
13. Color
    Green, gray, blue, yellow, white, black, any color available according to customer's requirement.
14. Package
    Standard pallet with packaged into thin film, bubble film for unit inside, woven bag for unit outside, or according to your requirements.

As the leading manufacturer of security fencing panels in China, we can ensure an excellent quality, reasonable price and delivery time.

Feature:

Four layers of anti-corrosion treatment.
Anti-oxidation and weather resistance.
Good impact resistance.
Dignified and generous.
Various color are available.
Non-welding, assembly design.
Quick and easy installation.

garrison fence-001

Application:

Galvanized steel tubular fence widely used as ornamental fence for industrial, agricultural, commercial, residential and municipal construction.

• Airport & harbor fencing.
• Residential allotment fencing.
• School security fencing.
• Station fencing.
• Garden & lawn fencing.
• Factory & hotel fencing.
• Parking lot fencing.
• Park & pool fencing.
• Power station fencing.
• Highway & railway roadside fence.
• Supermarkets & entertainment venues fence.
• Balcony protective fence.
• Stairway guardrail.
