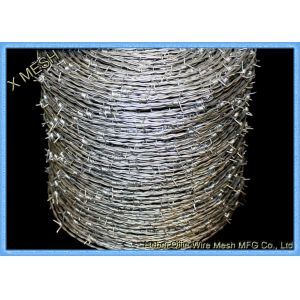

Top Quality Barbed Wire for Border security protection with ASTM
Standards
1. Materials:Q195 and Q235
2. Surface treatment: HDG,EG and PVC coated
3.Tensile of Strength:
1) Soft: 380-550N/mm2
2) High tensile:800-1200N/mm2
4. IOWA type,2strands, 4 points.Barb distance 3" to 6"(Tolerance
+/-1/2")
5. Applications: Widely used in Agriculture,Animal husbandry,
Dwelling house,Plantation,Fencing etc.
Material:
high quality low carbon steel wire,stainless steel wire ,cold
galvanized, hot-dip galvanized,medium carbon steel wire,galvanized,
PVC barbed wire mesh.
Type:
double twisted barbed wire ,general barbed wire,single strand
barbed wire,stoving varnish barbed wire.
Barbed wire size:
Common
specs:10#x10#,12#x12#,12#x14#,14#x14#,14#x16#,16#x16#,16#x18#
Barbed distance :7.5-15/cm
Barbed length:1.5-3/cm
galvanized barbed wire
hot dipped barbed wire
razor barbed wire
pvc barbed wire
Wire Materials: Galvanized steel wire, PVC coated iron wire in
blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass
boundary, railway, highway, etc.
| Barbed Wire Specification |
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) |
| Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 |
| 12# x 12# |
| 12# x 14# |
| 14# x 14# |
| 14# x 16# |
| 16# x 16# |
| 16# x 18# |
| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm |
| BWG11#-20# | BWG8#-17# |
| SWG11#-20# | SWG8#-17# |
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
