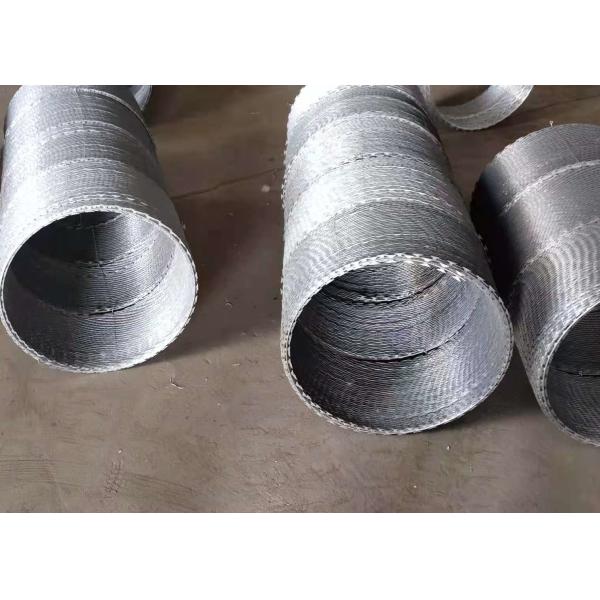

BTO22 Hot Dipped Galvanized Safety Razor Barbed Wire
Razor Barbed Wire is also named concertina coils or razor type barbed wire. It is a
kind of modern security fencing materials with better protection
and fencing strength made of hot-dipped galvanized steel sheets or
stainless steel sheets.
Razor Barbed Wire with beautiful and sharp blades and strong core
wire, razor wire has the features of secure fencing, easy
installation, age resistance and other properties.
Razor barbed tape is a kind of modern security fencing materials fabricated with
razor-sharp steel blade and high-tensile wire. Barbed Tape can be
installed to achieve the result of frightening and stopping to the
aggressive perimeter intruders, with piecing and cutting razor
blades mounted at the top of the wall, also the special designs
making climbing and touching extremely difficult. The wire and
strip are galvanized to prevent corrosion.
Currently, barbed tape has been widely used by many countries in
military field, prisons, detention houses, government buildings and
other national security facilities. Recently years, barbed tape has
apparently become the most popular high-class fencing wire for not
only military and national security applications, but also for
cottage and society fence, and other private buildings.

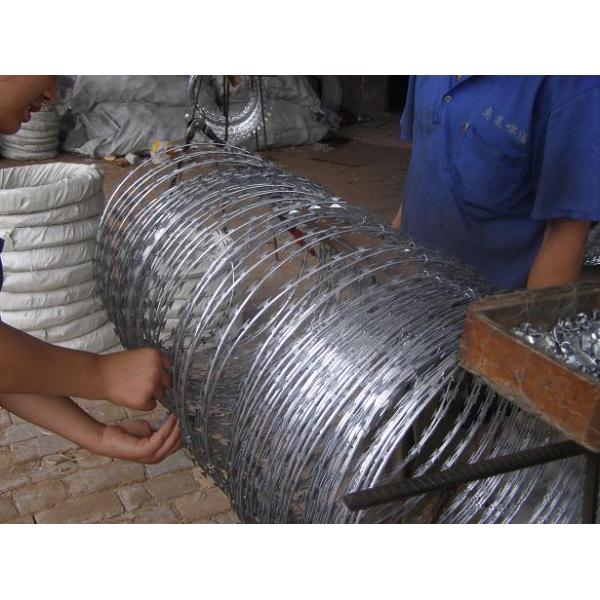

Razor wire
Material : Hot-dipped galvanized , stainless steel 430,
Stainless steel 304, PVC coated
Blade type : BTO-10 ,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28,
BTO-30,CBT-60,CBT-65
Loops : 56 loops , 33 loops , 55 loops , 144 loops and so on ,
we can aslo produce as per customer's requirement .
Clips : 5clips , 3 clips , without clip .
Packing : Inside waterproof paper ,
outside plastc weaving bags or carton box

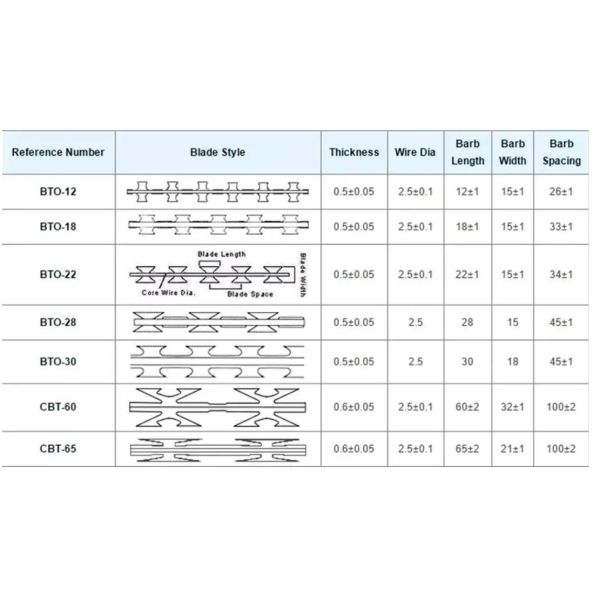

Specification:
Reference
Number | Thickness | Wire Dia | Barb
Length | Barb
Width | Barb
spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±2 |
Application:
