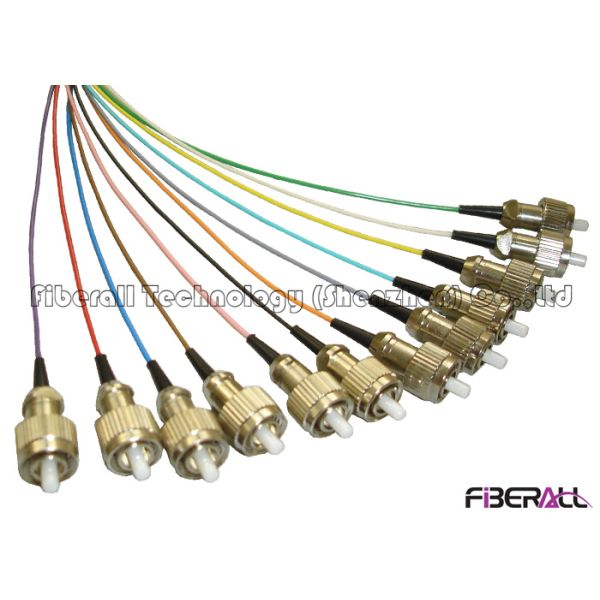

Breakout Bundle Fiber Optic Pigtail With 12 Colors 0.9mm Loose Tube FC Single Mode

FAPG-BFPS12, Breakout Bundle Fiber Optic Pigtail With 12 Colors 0.9mm Loose Tube FC Single Mode

Fiber optic pigtail and fiber optic jumper are two kinds of common network connection components in optical fiber network. They share many common features, but there are also some differences in some aspects. Understanding the similarities and differences between the two products will help you make the best choice for your project. Here Fiberall go through two aspects: structure and application to talk about similarities and differences between optical fiber patch cord and fiber pigtail.

Fiber pigtail, also called pigtail, refers to fiber cable assembly only with connector on one end of the fiber optic cable, and the other end is a bare fiber or optical fiber cable, the other end need to connect with other fiber optic cable via fusion splicing. Optical fiber jumper refers to a short fiber optic cable with connectors at both ends. The connector types at both ends of the fiber optic cable can be the same or different. A complete optical fiber patch cord can be cut into two shorter fiber pigtail.

Optical fiber pigtail and optical fiber jumper has a lot of common features in the structure. Both of them can use single-mode or multimode optical fiber or SM or MM connector, and they can be made into simplex and duplex. In addition, both the fiber patch cord or fiber pigtail, can be connected with a variety of fiber optic connectors including FC, SC, ST, LC, MTRJ, MPO, MU, SMA, E2000 etc..

In network connections, optical fiber jumper and fiber pigtail provide interconnection and cross connect for access equipment, and they are wildly used in telecommunication room and data center. They can use OM4, OM3, OM2, OM1, and OS1/OS2 fiber types, which can meet Gigabit Ethernet, Gigabit Ethernet requirements and high-speed fiber channel network connectivity requirements. However, they also have their respective application fields.

Fiber optic pigtail supports field fusion spicing and terminal connection. It should be installed in the protected place or environment requires fusion splicing, so usually optical fiber pigtail is used with fiber management devices such as optical fiber distribution frame (ODF), fiber joint box and optical fiber distribution box. Application of optical fiber pigtail can be seen everywhere, but the most common application is combination with other optical components. For example, waterproof fiber pigtail, with thick polyethylene (PE) outer sheath and large diameter, generally used for outdoor applications.

Specification Parameters Of Breakout Fiber Optic Pigtail

Characteristics And Advantages Of Bundle Fiber Optic Pigtail

1, Low insertion loss and high return loss

2, Wide application range and good environmental stability

3,With better protection and excellent tensile

4, Convenient for construction and with high safety

5, Color coded cable or with cable ring, can be quickly identified

6, small diameter, compact size and high density

7, polarity management is easy to integrate
