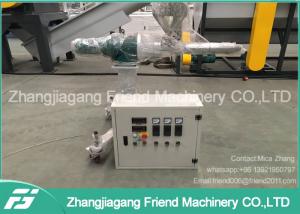

Mini PP PE PPEK PVA PLA Plastic Single Screw Extruder Machine With
PLC Control
Descroption:
The SJ25 Single Screw Plastic Extruder is mainly used for
experiment, that used for testing and extruding thermo-plastic such
as soft hard polyvinyl chloride (PVC) and polystyrene(PE), PP, ABS
coordinated with the appropriate auxiliary machine,(including the
die).
This set is advanced in design, good in plasticization and low in
energy consumption. The extruder is characterized by low noise,
stable working, big bearing capacity and long service life.
2, Main Technical Standards:
| Model No. SJ25 |
| Screw Diameter | 25 mm |
| Ratio of L/D | 25:1 |
| Screw Material | 38CrMoAlA |
| Hardness of Screw | HV900-1000 |
| Depth of Nitrogen Treatment | 0.4-0.7 mm |
| Screw Straightness | ＜0.015 mm |
| Main Motor Power | 2.2KW |
| Heating Method | Ceramic Heater |
| Heating Zones | 3 Periods(Screw Barrel 2periods,Head Piece 1 Periods) |
| Heating Power: | 1.5KW*3=4.5KW |
| Cooling Method: | Forced Air Cooling |
| Fan Motor Power | 60W*2=0.12KW |
| Screw Maximum Rotating Speed | 40 rpm |
| Maximum Capacity | 1-3Kg/h |
| 2,Main Parts: |
| Name: | Manufacturer: |
| Main Motor | AC Motor
|
| Screw and Barrel | Jinjiu Screw |
| Electrical System | Siemens Contactor RKC Temperature Control Meter |
| Converter | ABB Frequency Converter |
| PLC control | yes |
| 3,Equipment Simple Description |
| The extruder is applied for plastic extrusion, through the hopper
into the barrel, the material goes into the mould through the
screw’s transmission, compression, mixing and measurement. The
material of screw and barrel is 38CrMoAlA, after quenching ,
tempering and nitrogen treatment. |
Why choose us?
We are a professional manufacturer of Plastic Extruders ,we produce
plastic extrusion machine.
1. Cost performance is high
All the machine ,we make it ourself to reduce the cost of our
customer.
2. Genuine product with excellent quality
We choose our material andequipment strictly.
All the material come to our factory must pass the quality test.
3. Engerneers available to serve oversea
4. Quick delivery
The company provide just in time delivery with its streamlined
supply chain.
5. Cost saving
We take strong attention to every detail in the manufacturing
process.
The quality control in our factory is very strict.
All defective semi-manufactures must be treated again or reject.
All the machine must be checked out ,then delivered to our
customer.
All about that pushing up the price,but get good quality machine.
What we want to do is give our customer a good quality product with
stable working and long lived.
Q: What is your delivery time?
A: Normally, it needs about 30 days. The exact time depends on
production management.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is
35-60 days if the goods are not in stock, it is according to
quantity.
