1.0m/S Permanent Mangent Synchronous Gearless Traction Machine Flat Tpye

Name: 10mS Permanent Mangent Synchronous Gearless Traction Machine Flat Tpye
Brand: SUNNY
Price: 500 USD

Ask Lasest Price
Brand Name :	SUNNY
Model Number :	SN-MCK300
Certification :	CE,ISO9001
Price :	$500~1200
Payment Terms :	Western Union, T/T, L/C,Paypal
Supply Ability :	5000 Pcs/ Month
Delivery Time :	7~15 days

Add to Cart

Product Details
Company Profile

1.0m/S Permanent Mangent Synchronous Gearless Traction Machine Flat Tpye

Permanent Mangent Synchronous Gearless Traction Machine Speed:0.5~2.5m/s Flat Tpye

1.0m/S Permanent Mangent Synchronous Gearless Traction Machine Flat Tpye

Product Name:	Permanent Mangent Synchronous Gearless Traction Machine Speed:0.5~2.5m/s Flat Tpye	Voltage:	380V
Roping:	2:1	Wrap:	Single
Elv. Load:	1250~1600kg	Elv. Speed:	0.5~2.5m/s
Sheave Diam:	400mm/480mm	Duty:	S5-40%ED
Starts Per Hour:	240st/h	Max. Static Load:	6000kg
Weight:	480kg	Brake:	DC110V 2X1.6A
IP Code:	IP41	Ins. Class:	F

Our advantage:

1.We have 10 years' export experience and are ready to serve your market.
2.More than twenity years in elevator spare parts.
3.A leader in Mainland China.
4.We can provide high quality technical support.
5.We guarantee first-rate services.

Remark:
1.The machine can also be used for machine roomless.
2.Optional AC 220V rectifier for brake.

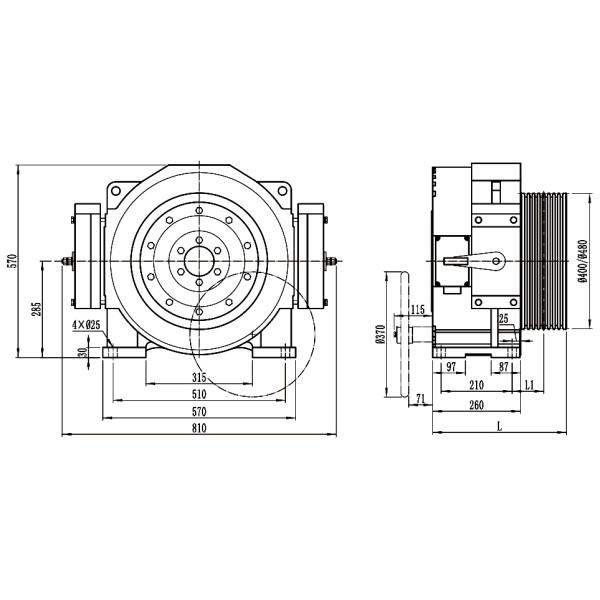

Spec	Elv Load(kg)	Elv Speed(m/s)	Sheave Diam(mm)	Sheave Groove	Current(A)	Power(KW)	Speed(r/min)	Freq(Hz)	Torque(N.m)	Poles	L(mm)	L1(mm)	Undercut Angle(0)
1250-0.5A	1250	0.5	400	6xØ10x15	13	4.3	48	12.8	850	32	381	86	95
1250-0.63A	1250	0.63	400	6xØ10x15	13	5.3	60	16.0	850	32	381	86
1250-1.0A	1250	1.0	400	6xØ10x15	20	8.5	95	25.3	850	32	381	86
1250-1.5A	1250	1.5	400	6xØ10x15	34	12.7	143	38.1	850	32	381	86
1250-1.6A	1250	1.6	400	6xØ10x15	34	13.6	153	40.8	850	32	381	86
1250-1.75A	1250	1.75	400	6xØ10x15	34	14.9	167	44.5	850	32	381	86
1250-2.0A	1250	2.0	400	6xØ10x15	38	17.0	191	50.9	850	32	381	86
1250-2.5A	1250	2.5	400	7xØ10x15	45	21.3	199	53.1	1020	32	381	86
1350-0.5A	1350	0.5	400	7xØ10x15	14	4.6	48	12.8	920	32	381	86
1350-0.63A	1350	0.63	400	7xØ10x15	14	5.8	60	16.0	920	32	381	86
1350-1.0A	1350	1.0	400	7xØ10x15	21	9.2	95	25.3	920	32	381	86
1350-1.5A	1350	1.5	400	7xØ10x15	36	13.8	143	38.1	920	32	381	86
1350-1.6A	1350	1.6	400	7xØ10x15	36	14.7	153	40.8	920	32	381	86
1350-1.75A	1350	1.75	400	7xØ10x15	36	16.1	167	44.5	920	32	381	86
1350-2.0A	1350	2.0	400	7xØ10x15	40	18.4	191	50.9	920	32	381	86
1350-2.5A	1350	2.5	400	7xØ10x15	52	22.9	199	53.1	1100	32	381	86
1600-0.5A	1600	0.5	400	7xØ10x15	18	5.6	48	12.8	1110	32	381	86
1600-0.63A	1600	0.63	400	7xØ10x15	18	7.0	60	16.0	1110	32	381	86
1600-1.0A	1600	1.0	400	7xØ10x15	26	11.0	95	25.3	1110	32	381	86
1600-1.5A	1600	1.5	400	8xØ10x15	41	16.6	143	38.1	1110	32	396	93.5
1600-1.6A	1600	1.6	400	8xØ10x15	41	17.8	153	40.8	1110	32	396	93.5
1600-1.75A	1600	1.75	400	8xØ10x15	41	19.4	167	44.5	1110	32	396	93.5
1600-2.0A	1600	2.0	400	8xØ10x15	47	22.2	191	50.9	1110	32	396	93.5

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
