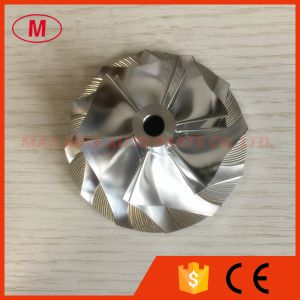

TE06H 16M 49185-40700 49185-01041 48.04/68.01mm 6+6 blades Turbo Billet/aluminum 2024/milling compressor wheel

1. MODEL:TE06H 16M forward

2.TE06H 16M 49185-40700 49185-01041 48.04/68.01mm 6+6 blades Turbo Billet/aluminum 2024/milling compressor wheel for 49179-02250

3.Size:

Nose diameter:13.50mm

Inducer:48.04mm

Exducer:68.01mm

Tip height:5.00mm

Superback:2.90mm

Overall height:31.50mm

bore size :6.50mm

Trailing Angle:45

Cutback:0.0

SP height angle:-4.50

Splitter height:15.55mm

Blade height :22.94mm

6+6 BLADES.

Forward rotation

​Tapered tip angle:0 degree

FIT FOR OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
