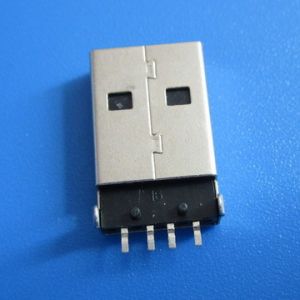

    Male USB Connector 4Pin SMT A Type

    Ask Lasest Price
    Brand Name : LP
    Model Number : LP-U008
    Certification : ISO-9001:2000
    Price : 0.01
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000pcs
    Delivery Time : 7~10 days
    • Product Details
    • Company Profile

    Male USB Connector 4Pin SMT A Type

    DESCRIPTION
    Male USB Connector 4Pin SMT A Type
    ELECTRICAL
    1.Current Rating1.5 amps
    2.Voltage Rating125vac
    3.Insulation Resistance500 MΩmin
    4.Contact Resistance30 MΩmax
    5.Withstanding VoltageAC 1000V RMS 50Hz or 60Hz 1 min
    MECHANICAL
    1.Insertion Force
    • 2 CONTACTS....350g
    • 4 CONTACTS….500g
    • 6 CONTACTS….750g
    • 8 CONTACTS….900g
    • 10 CONTACTS....1050g
    2.Retention Strength7.7KG.F min between jack and plug
    3.Durability750 mating cycles min
    MATERIAL
    1.HousingABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
    2.Contact Wire

    Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness

    phosphor bronze alloy selective gold plating over nickel

    3.Shield0.20~0.25mm thickness brass with tin plated
    4.Gold Plating1u" , 3u" , 6u" , 15u" , 30u" , 50u" .
    5.RoHS peak wave solderRoHS-5 peak wave solder temperature rating 235℃±5℃
    6.RoHS peak wave solderRoHS-6 peak wave solder temperature rating 260℃±5℃
    OPERATING AND STORAGE TEMPERATURE
    Operating Temperature-40℃ to 85℃
    Storage Temperature-40℃ to 85℃
    APPLICATION
    NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
    STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.
