| Brand Name : | MX |
| Model Number : | MX12025GBH1 |
| Certification : | CE / ROHS |
| Price : | USD 5 . 8 - USD 6 . 9 or Negotiable |
| Payment Terms : | T / T |
| Supply Ability : | 40 , 000pcs per month |
| Delivery Time : | 7 - 10 working days after received payment |
round diameter 12cm dc12V centrifugal fan 25mm thickness high speed 4800rpm
| Item | Specification / Condition | ||
| 1 | Mode1 No . | MX12025GBH1 | |
| 2 | Outline . Dimension | 120 * 25mm | |
| 3 | Operating Voltage | DC 12V | |
| 4 | Rated . voltage | DC 12V | |
| 5 | Starting Voltage | DC ≤ 7 . 0V on / off | |
| 6 | Rated current | 1 . 9A ( MAX1 . 9A ) | a . Rated . voltage b . 25 ℃ 65 % RH c . After testing for 5 minutes |
| 7 | Power consumption | 21 . 6W ( MAX0 . 48W ) | |

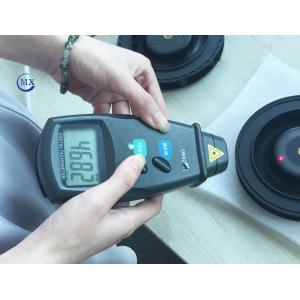

| 8 | Speed | 4800 ± 10 % RPM | |
| 9 | Max Airflow | 120CFM | a . Rated . voltage b . Standard C . Rated current |
| Air .Static Pressure | 50mmH2O | ||
10 | Noise Level | 52 . 25dB | a . Rated Voltage b . Non - Echo Chamber c . Standard : CNS 8753 / ISO 3744 d . Test Condition : ISO 7779 e . Distance: 1 . 0 M |
| 11 | Life expectancy | 50000Hrs 25 ℃ | MTTF ( Mean Time To Failure ) Conf . Level 90 % ) |
| 12 | No . of . Blade | Round | |
| 13 | No . of . Pole | 4 | |
| 14 | Rotating Direction | Counterclockwise | |
| 15 | Lock Protection | YES | |
| 16 | Polarity Protection | YES | |
| 17 | Overvoltage protection | NO | |
| 18 | Overcurrent protection | NO | |
| 19 | FG | NO | |
| 20 | PWM function | YES | |

P . S . :
You could choose the shipping way by yourself .
You could choose the freight forward company by yourself .
We could arrang the shipment according to your require .
If you have any requirements you could contact me soon .
Application
The products . including brushless fans . cross flow fans . blower fans . centrifugal fans . dc brushless
motor . shades pole and RC ac fans etc. are being widely used in the information technology . network
communications as well as industrial production equipment . medical equipment . and others .
Factory
Shenzhen Topfan - China Development Technology Co . , Ltd , founded in 1996 in Shenzhen China , is
a professional manufacturer on dc brushless fans and ac fans . Products are CE , RoHS certificated
and good sellers both at home and abroad , including Europe , North America , Asia ( Korea and India )
etc .
