Drinking Water Bottling Machine / Purified , Mineral Water Filling
Plant Line Cost
Technical parameter
| Model | CGF18-18-6 |
| Capacity | 6000bph (500ml PET bottle) |
| Bottle Height | 150-320mm |
| Bottle Diameter | 40-108mm |
| Filling Tenperature | ambient |
| Filling Technology | gravity filling |
| Applications | purified water and mineral water |
| Power supply | 380V 50Hz 3Phases or customized |
| Total power | 5.03KW |
| Dimension | 2450*1800*2300mm |
| Weight | 3500kg |
product description
This Automatic Wash-filling-capping Water Filling Machine is used
to produce bottled mineral
water, purified water, flavored water, alcoholic beverage and other
non-gas Liquid. This Machine
can be applied to all kinds of plastic products such as PET, PE
Bottles, size varies from 250ml-
2500ml meanwhile few changeover is needed. This machine has 18
rising heads, 18 filling
heads and 6 capping heads, capacity varies from 4000BPH to 6000BPH
(for 500ml PET bottle).
Our water filling machine is designed for the low/middle capacity
and small factory. It features low
water and low electricity consumption, small space occupation as
well as easy operation. At the
same time It improves the sanitary conditions and simplifies the maintenance
compared with the
last generation water filling machine. it can perfectly complete the function of automatic washing,
filling and capping, which has been aproved by our clients as
technical matured and quality
product.
product pictures

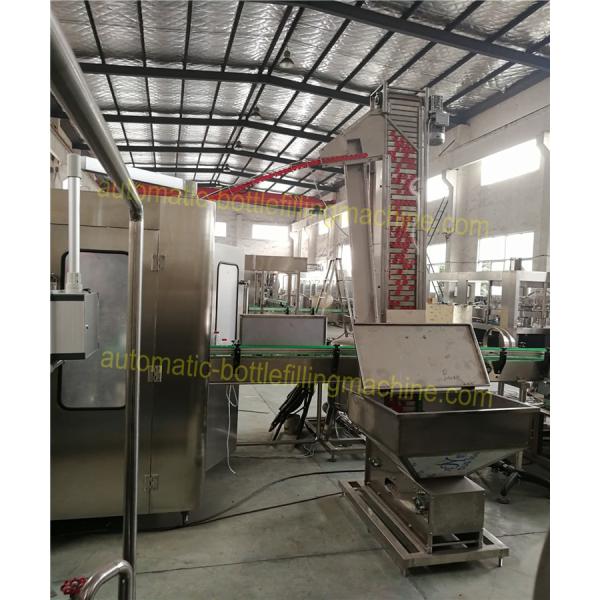

overall look
cap loader
eletrical system
besides this CGF18-18-6, we also have other capacity
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) | Diameter:Φ50-Φ108 Height:150-320 |
| Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
FAQ
1.Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based
on your request.
2.Q: What payment terms you take?
A: We prefer T/T, but other terms also workable for us.
3.Q: Will you send engineers to install the plant?
A: Yes, Our factory have professional installation team and
after-sales team for you .Our senior engineers
will have a good training to how to operate the machines and the
complete production line for you and
your workers.
4.Q: How can I visit and check your company?
A.Our factory is located in Our factory is located in Zhangjiagang City.,Jiangsu
Province,China (Mainland).
From Shanghai International Airport to our office need only 120
minutes.
5.Q: How long is your guarantee?
A: Twelve Months Guarantee except sparing parts. You will be
welcome to contact us with any problem
might occured.
6.Q: Voltage Requirement ?
A:Usually it is 380V, 50HZ, 3Phase , or Some Countries are 220V,
240V, 415V industrial Voltage all is OK.
