Loop End Wire Rope Lifting Slings / Steel Cable Slings Nickel Color With Clips

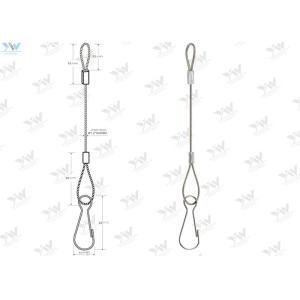

Ø 1.2mm Loop End Wire Rope Sling Stainless Steel Wire Tracers With Clips

The wire tracer has loop ends with clip,either one clip or two clips are available upon request.

7X7 304 Stainless Steel Wire,with diameter of 1.2mm.

What type of cable do I need?

The cable has to be 7x7 or 7x19 stranded aircraft cable in stainless or galvanized steel.

Cables should have factory installed terminals (stop-sleeves). The cable diameter depends

of the weight of the fixture.

What’s the difference between Galvanized and Stainless cable?

Both Stainless Steel and Galvanized Aircraft Cable have approximately the same break strength. Galvanized cable is less expensive and is used in 90% of all lighting applications.

Description

End Fittings and Hardware Available:

1. Custom Machined End Fittings
2. Stop Sleeves
3. Button Stops
4. Ball Fittings
5. Cylinder
6. Threaded Studs
7. Hooks
8. Shackles
9. Wire Rope Clips
10. Turnbuckles
11. Thimbles

Custom fittings:

If a lanyard using standard, off-the- shelf fittings doesn't work for your application, We have the capability to manufacture custom fittings to perfectly meet your unique requirements. By utilizing our in-house machine shop, we can precision-machine any type of end fitting as well as provide custom tabs, eyelets, and other custom hardware to your specification.

Assembly Tolerances

Overall length tolerances required for cable assemblies and cut lengths of cable often dictate the production method to be used and thus the cost. Close tolerances frequently result in higher costs for both production and quality assurance. The allowable tolerance and inspection methods should be reviewed and agreed upon with our prior to production.

Breaking Strength Safety Factor

In determining the working load of a cable or wire rope, the direct stress plus the shock in bending

loads must be considered. To assure long life, a reasonable safety factor should be applied to the

working load. Standard industry practice is a 5:1 safety factor for many applications. Higher safety

factors are used under certain conditions such as extreme shock loads, aircraft control cables, etc.

The fatigue life of the cable or wire rope will be greatly enhanced with properly designed pulleys.

The root, or pulley tread diameter, is critical to the life of the cable.

Jonwin Limited(Yingwei Lighting Accessory Co.,Ltd.) is a manufacturer that specialized in producing Hardware and Accessory for Lighting, Hanging System for Acoustic Panels, and Billboard.

Our products range includes Cable Grippers,Ceiling Attachments,Hooks,Standoff,Steel Wire,Swivels,Rocker Arm and suspension kits.

The factory is located in Dongguan,Guangdong,China,with 2,500 Square Meters production area and advanced manufacturing equipments, including CNC high precision automatic lathes, Table Lathes, Grinder and Polishing Machines, Automatic Polishers and Spray Equipments, as well as Die Casting Machine and Testing Machine.

With the experience of manufacture and sales for more than 10 years, Yingwei is growing up steadily and rapidly.

Our well-equipped facilities, excellent quality control, on-time delivery and good after sales service enable us to guarantee total customer satisfaction and expand the global sales network.

We are currently exporting our products mainly to USA,Canada,Japan,Russia,UK,France,Italy,Germany,Finland,Spain,Poland and other European Area.

With the growing demand from end users for reduced installation cost and increased flexibility, suspension kit and hanging system is becoming more and more important.

Cooperate with Yingwei, make the installation easy and flexible!
