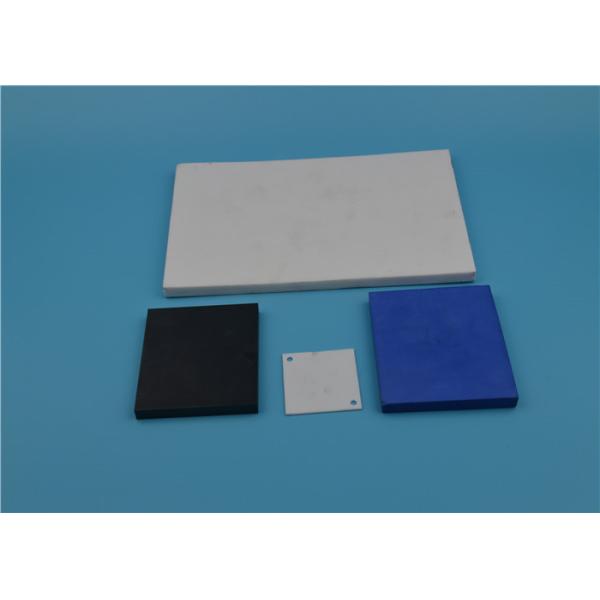

Good Flatness Black Ceramic Sheet / Blue Zirconia Ceramic Sheet
Black ceramic Sheet / Blue zirconia ceramic sheet
■Good smoothness / flatness with less porosity. Excellent in
adhesion with thin film and thick film materials.
Black ceramic Sheet / Blue zirconia ceramic sheet with Less variance in outline, plate thickness, slit pitch, etc.
■Minimal warpage, bending, and undulation.
■Physical and chemical properties are stable even under a hot
environment. Excellent in thermal shock resistance. High thermal
conductivity and coefficient of thermal expansion similar to that
of silicon.
■Superior mechanical strength. Products with higher mechanical
strength are also in our lineup.
■Excellent resistance against oil and chemical.
■Excellent in insulation properties, high dielectric breakdown
voltage, high surface resistivity / volume resistivity, and small
dielectric constant.
■Stable breaking strength, and less variance in shape or
dimensions.
■The high reflective substrate, especially suitable for optical
applications such as LED, is also available.
Applications of Black ceramic Sheet / Blue zirconia ceramic sheet :
LED packages, zirconia Sheet / zirconia Ceramic Board for chip resistors, HIC substrates for heat dissipation, Power
modules, FAX substrates for thermal printer head
*Various processing is available (thin film metalization, thick
film metalization, glaze, etc.)This zirconia Sheets /zirconia Ceramic Board is characterized by its extremely high strength and thermal
conductivity. The outstanding surface quality on both sides makes
it the perfect companion for any commercial thick film paste and
even makes it suitable for a number of thin film applications
(sputtering).
Black ceramic Sheet / Blue zirconia ceramic sheet Features :
Alumina substrates can withstand high temperature and maintain high
strength and hardness. Alumina plates also have superb performances
in electrical insulation, high chemical resistance and low thermal
expansion. We have various sizes of semi finished shapes in stock
and are able to conduct custom manufacturing for all kinds of
alumina components.
-- Excellent wear resistance and long working life.
-- Good impact resistance.
-- Good corrosion resistantce.
-- Good thermal shock resistance.
-- Smooth surface and good adherence resistance.
-- Quick installation and good service after sale.
Properties of Alumina and Zirconia Ceramic :
| Properties | Units | 95 Alumina | 99 Alumina | ZrO2 |
| Density | g / cm³ | 3.65 | 3.92 | 5.95-6.0g/cm³ |
| Water absorption | % | 0 | 0 | 0 |
| Coefficient of thermal expansion | 10-6/K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young's Mod | GPa | 280 | 340 | 210 |
| Poisson's ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness HV | MPa | 1400 | 1650 | 1300-1365 |
| Flexural Strength @ room temperature | MPa | 280 | 310 | 950 |
| Flexural Strength @700°C | MPa | 220 | 230 | 210 |
| Compressive Strength @ room temperature | MPa | 2000 | 2200 | 2000 |
| Fracture Toughness | MPa *m 1/2 | 3.8 | 4.2 | 10 |
| Heat conductivity @ room temperature | W/ m*k | 18-25 | 26-30 | 2-2.2 |
| Electrical Resistivity @ room temperature | Ω*mm2 /m | >1015 | >1016 | >1015 |
| Max use temperature | °C | 1500 | 1750 | 1050 |
| Resistance to acid alkaline | / | high | high | high |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV/mm | 16 | 22 | / |
| Thermol Shock Resistance | △ T ( °C ) | 220 | 180-200 | 280-350 |
| Tensile Strength @ 25 °C | MPa | 200 | 248 | 252 |
Company Introduction:
We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a
professional manufacturer specialized
in R&D, manufacturing and selling customized all kinds of high
precision zirconia and alumina ceramic parts . Our main products
include ceramic rod , ceramic tube, ceramic plunger, ceramic valve,
ceramic plate, ceramic shaft and bearing , ceramic nozzle etc ,
which are mainly used in industrial fields of Machinery,
Petrochemical oil and gas, Valves, Automotive, Food Processing,
Fluid Handling, Process Control, Thermal Processing, Aerospace,
Defense, Eletronic and Electrical, Textile, Mechanical,
Engineering, Mineral Processing, etc.
We have a full service include mold design and development ,
ceramic forming , precision machining
and precision detection technology. We have achieved great
successes in particular requirements
which is based on cooperating with Tsinghua University and getting
rich experience by our professional technical engineer teams . Our
factory have an unique technical called mirror polishing which
improve
our products more smooth , bright than other competitors.
Machining precision data: (reference data,the actual data is subject to the actual
conditions)
(1)Shaft parts: Radial dimensions can reach 0.0015 mm; roundness
0.001 mm, concentricity 0.0025 mm, roughness 0.01
(2)Hole type parts:Machining minimum aperture of 0.3 mm, depth can
reach 3 mm;The diameter of 1 mm can be radial 0.002 mm;Roughness
0.02-0.04;
(3)Plane processing:The tolerance can reach 0.002 mm, and the plane
is 0.0015mm.
(4)Ceramic thread processing:the internal thread M2 can be grinds,
thread precision GB-7h; The outer thread size is not limited, the
precision GB-6g;
More photos of Black ceramic Sheet / Blue zirconia ceramic sheet :
Our High precision Machining Machine :
Laser Cutting machine making holes :
FAQ :
1. What kind of industry ceramics do you have ?
We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic
parts .
2. What kind of molding method do can you supply ?
Dry Pressing , isostatic pressing , grouting , hot-chamber die
casting , tape casting , injection molding, etc, injection molding
and isostatic molding is the most commonly used.
3.What stabilizer do you use when processing ?
Yttria stabilizer is the most commonly used in our industrial
ceramic parts.
4.Can you produce free samples for me ?
Yes usually , we can produce free samples for you but it is up to
the product complexity .
5.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but
paypal and western union only for small -sum payment.
