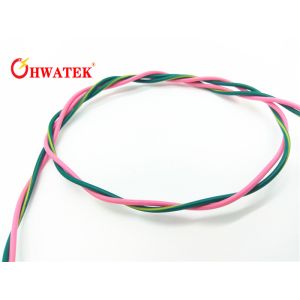

Single Conductor Electrical Wire PVC Insulated High Flexible UL1007 32 AWG - 16 AWG

UL1007 Single Conductor with Extruded Special PVC Insulation,High Flexible

Construction

Conductor : Stranded bare or tinned copper, IEC60228 CL5
Insulation: Special PVC

Standards
International: UL758 , UL1581, UL2556,IEC60228 CL6

RoHS,REACH Compliant,

Technical data
Rated voltage:300V
Rated Temperature: -40~80 ℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 AWM STYLE 1007 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.

Nantong Hwatek wire and cable Co., LTD was established in 2004,and located in #528 Xinsheng Road,Huaqiao international business park,Kunshan city.Factory Area:12000 square meters,300 sets of production and test instruments,production capability is over than 300 ton.In addition,we can make overall cable test including environment,electric,mechanical,physical performance etc.We obtain the ISO9000,ISO14000,TS16949 management system certifications and UL,CUL,CE,CCC production certifications,during the marking expand and customer service,we will continue to add management system and production certifications,Hwatek mainly product as following:Electronic consumer,industry connect cable,communication and medical cable,Energy cable and locomotive.

In order to ensure Hwatek production have persistent marking competitive power,Hwatek put forward advise and issue new objects to meet customers "special requirements".According to the requirements of marking and customers,Hwatek promote product certification and production line devices.

 Hwatek persist in "Credibility and integrity management,High quality service,Continuously provide a satisfactory assort for customers" Enterprise Tenet,Constantly improve and perfect innovation,we will do our best to provide more professional service for our customers.

ISO 45001 Certificate.pdfISO 9001 Certificate.pdfISO 13485 Certificate.pdfIATF 16949 Certificate.pdf
