    23KW Low - E Horizontal Flat Glass Washing Machine And Dryer Gear Driving

    Ask Lasest Price
    Brand Name : Saint Best
    Model Number : SBT-HGW1600/2000/2500
    Certification : VALID
    Price : Negotiable;Insulating Glass Washing Machine
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 18 Sets/Month Horizontal Low-e Glass Washer
    Delivery Time : 15days
    • Product Details
    • Company Profile

    23KW Low - E Horizontal Flat Glass Washing Machine And Dryer Gear Driving

    Flat Glass Washing And Drying Machine,Horizontal Glass Washing Machine,Glass Washing Machine,Low-e Glass Washing Machine
    Detailed Product Description
    Machine:Automatic Tempered Glass Washing Machine / Insulating Glass MachineModel:SBT-GWM2500
    Application:Glass Washing MachineMax Washing Size:2500mm
    Glass Thicknes:3~20mm

    Horizontal Low-E Glass Washing Machine for Insulating Glass / Double Glazing

    Horizontal Low-E Glass Washing Machine

    Quick Details

    • Place of Origin: China (Mainland)
    • Brand Name: SAINT BEST
    • Model Number: SBT-GWM2500
    • After-sales Service Provided: Engineers available to service machinery overseas
    • Voltage: 380V 50Hz
    • Power: 19.5kw
    • Air source pressure: 0.5-0.8Mpa
    • Max. glass size: 2500x3500mm
    • Min. glass size: 300x200mm
    • Glass thickness: 3-20mm
    • Washing speed: 1-8m/min
    • Work height: 850±20mm
    • Recycle water: 0.5T/day

    Packaging & Delivery

    Packaging Details:Standard Export Package or according to customers' demands.
    Delivery Detail:15days

    Horizontal Low-e Glass Washing Machine

    Horizontal Glass Washing Machine

    Features:

    1.High-press vapor washing, individual circulating water.


    2.High-quality stainless steel cover, transmission rollers adopts full rubber rollers. Main driving adopts stepless frequency speed control.


    3.3 pairs of high-quality nylon soft brushes, 3 individual water circuits, water heating, wash different glass adopts different brushes (Optional).


    4.Washing and drying adopts gear driving.


    5.Motor lifting (400mm), easy brushes roller replacement structure.


    6.Washing height digital display, 2 pairs of high pressure air knife, stable gear wheel conveyance.


    7.High-speed washing, water wringing rollers installed.


    8.Low noise and close air drying room.


    Parameter:

    1.Total power: 19.5Kw

    2.Air source pressure: 0.5-0.8Mpa

    3.Max. glass size: 2500x3500mm

    4.Min. glass size: 300x200mm

    5.Glass thickness: 3-20mm

    6.Washing speed: 1-8m/min

    7.Work height: 850±20mm

    8.Recycle water: 0.5T/day

    9.Dimension:5800x3300x2200mm

    1.Brief introduction:
    1.1 SBT-HGW2500 Glass Washer & Drier adopts horizontal structure and is used for cleaning and drying flat glass.
    1.2 It is made up of 3 pairs of brush for clear and 2 pairs of Knives for drying.
    1.3 It can process different glass like float, coating and LOW-E glass by different options.
    1.4 The washing section is adjusted by electric motor, with digital display.

    Which can be elevated and lowered as a whole,and the Max.hoist height is 400mm.



    2.Technical parameter:
    2.1 Max. Processing Width: 2500mm
    2.2 Min processing size: 350*350mm
    2.3 Processing thickness: 3-30mm
    2.4 Weight: 5500KG
    2.5 Power: 23KW
    2.6 Dimension: 7300*2860*3200mm


    3.Machine Details :
    3.1 Sprinklers for pre-washing:

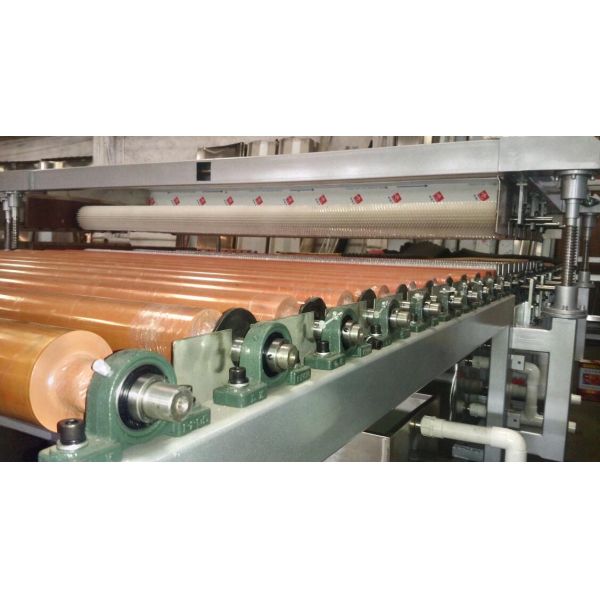

    3.2 Transfer Rubber Roller:




    3.3Transmission of Brushes For Glass Cleaning:




    3.4 Air Blower For Glass Drying:

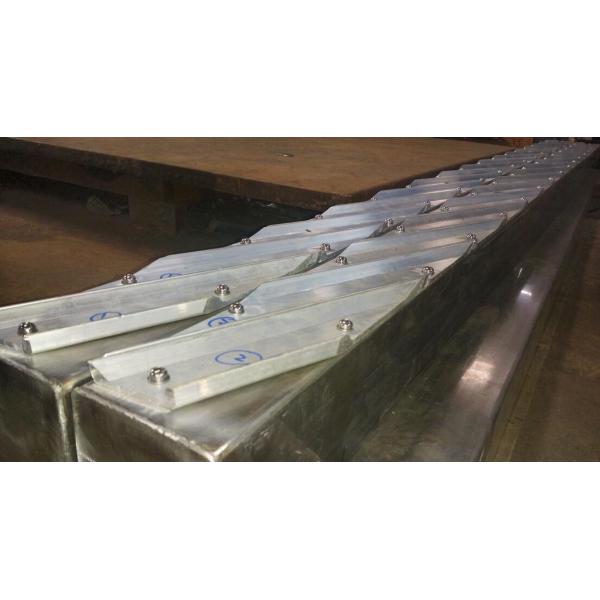

    3.5 Air Knife For Glass Drying:


    Machine Processing

    SAINT BEST GROUP selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.Horizontal Glass Washing Machine,Horizontal Low-E Glass Washing Machine,Glass Washing Machine,Low-e Glass Washing Machine,Horizontal Glass Washer,Horizontal Low-e Glass Washer,Insulating Glass Washing Machine,Low-E Insulating Glass Washing.


    Qualit Control

    SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

    After machine production finished, the products will be tested in professional ways make sure its performance.Double Glazing Glass Washing Machine,Low-E Double Glazing Glass Washing Machine,Tempered Glass Washing Machine,Laminated Glass Washing&Drying Machine.


    Packaging & Shipping

    SAINT BEST GROUP produce high quality machines, also pay attention to package.

    The machines will be packed with steel pallet and standard export wooden case,

    to make sure customer will receive the machines they ordered Intact.Laminated Glass Washing Machine,Laminated Glass Washer,Automatic Low-E Glass Washer,Automatic Low-E Glass Washing Machine,Solar Glass Washing Machine,Horizontal Solar Glass Washing Machine,Horizontal Glass Washing&Drying Machine.Automatic Glass Washing Machine,Automatic Low-E Glass Washing Machine.

    Automatic Tempered Glass Washing Machine / Insulating Glass Machine

    Our Services

    Before Sale:

    Free contact for the most suitable machine

    Free professional design for each customer especially.


    After sale service :

    24 hours technical support by phone, email or skype (email or skype) .

    1years warranty period

    Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

    By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.


    Payment Terms :

    ♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

    ♦ Western Union or Paypal


    A,12month warranty

    B,1%-2% spare parts

    C, OEM&ODM are welcomed

    D,Trail orders are available

    Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

    By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Horizontal Glass Washing Machine,Horizontal Low-E Glass Washing Machine,Glass Washing Machine,Low-e Glass Washing Machine,Horizontal Glass Washer,Horizontal Low-e Glass Washer,Insulating Glass Washing Machine,Low-E Insulating Glass Washing.

    Saint Best Group always looking for long term cooperaion, not one time deal

    Our Advantage:

    Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Double Glazing Glass Washing Machine,Low-E Double Glazing Glass Washing Machine,Tempered Glass Washing Machine,Laminated Glass Washing&Drying Machine.
