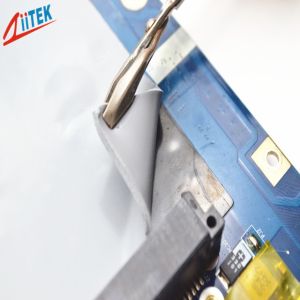

    Buy cheap 3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s from wholesalers

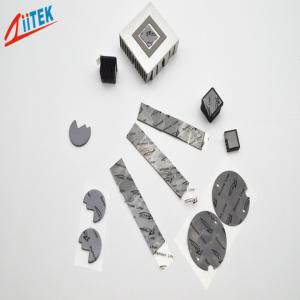

    Buy cheap 3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s from wholesalers
    • Buy cheap 3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s from wholesalers
    • Buy cheap 3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s from wholesalers
    • Buy cheap 3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s from wholesalers

    3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s

    Ask Lasest Price
    Brand Name : ZIITEK
    Model Number : TIF100-30-02s
    Certification : UL and RoHs
    Price : negotiation
    Supply Ability : 10000/day
    Delivery Time : 3-5work days
    • Product Details
    • Company Profile

    3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s

    3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s

    Company Profile
    Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

    The TIF100-30-02S )is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF100-30-02S is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

    Features:

    > Good thermal conductive: 3.0 W/mK
    > Moldability for complex parts
    > Soft and Compressible for low stress applications
    > Available in varies thickness
    >Broad range of hardnesses available
    >RoHS compliant
    >UL recognized

    Applications:

    > High speed mass storage drives
    > cooling components to the chassis of frame
    > Automotive electronics
    > RDRAM memory modules
    > Audio and video components
    > Telecommunication hardware
    > Handheld portable electronics
    >GPS navigation and other portable devices
    >Monitoring the Power Box

    Typical Properties of TIF™100-30-02S Series
    Color

    gray

    		VisualComposite ThicknesshermalImpedance
    @10psi
    (℃-in²/W)
    Construction &
    Compostion
    Ceramic filled silicone rubber
    		***10mils / 0.254 mm0.21
    20mils / 0.508 mm0.27
    Specific Gravity
    		2.01 g /ccASTM D297

    30mils / 0.762 mm

    		0.39

    40mils / 1.016 mm

    		0.43
    Heat Capacity
    		1 l /g-KASTM C351

    50mils / 1.270 mm

    		0.50

    60mils / 1.524 mm

    0.58

    Hardness
    		45 Shore 00ASTM 2240

    70mils / 1.778 mm

    		0.65

    80mils / 2.032 mm

    		0.76
    Tensile Strength

    40 ps

    		ASTM D412

    90mils / 2.286 mm

    		0.85

    100mils / 2.540 mm

    		0.94
    Continuos Use Temp
    		-40 to 160℃

    ***

    110mils / 2.794 mm

    		1.00

    120mils / 3.048 mm

    		1.07
    Dielectric Breakdown Voltage
    		>1500～>5500 VACASTM D149

    130mils / 3.302mm

    		1.16

    140mils / 3.556 mm

    		1.25
    Dielectric Constant
    		5.5 MHzASTM D150

    150mils / 3.810 mm

    		1.31

    160mils / 4.064 mm

    		1.38
    Volume Resistivity
    		6.3X1012Ohm-meterASTM D257

    170mils / 4.318 mm

    1.43

    180mils / 4.572 mm

    		1.50
    Fire rating
    		94 V0

    equivalent UL

    190mils / 4.826 mm

    		1.60

    200mils / 5.080 mm

    		1.72
    Thermal conductivity
    		3.0 W/m-KASTM D5470Visua l/ ASTM D751

    ASTM D5470




    Packaging Details & Lead time

    The packaging of thermal pad
    1.with PET film or foam-for protection
    2. use Paper Card To Separate Each Layer
    3. export carton inside and outside
    4. meet with customers' requirement-customized

    Lead Time :Quantity(Pieces):5000
    Est. Time(days): To be negotiated

    Standard Sheets Sizes:

    8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
    TIF™ series Individual die cut shapes can be supplied.

    Certifications:

    ISO9001:2015

    ISO14001: 2004 IATF16949:2016

    IECQ QC 080000:2017

    UL



    Advantage

    Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
    They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

    Q&A

    Q: How to find a right thermal conductivity for my applications

    A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



    16" x 18"(406mm x 457mm)

    TIF™ series Individual die cut shapes can be supplied.

    Product Tags:

    high temperature phase change materials



    thermal conductivity silicone



    3 W/m-K Thermal Gap Filler

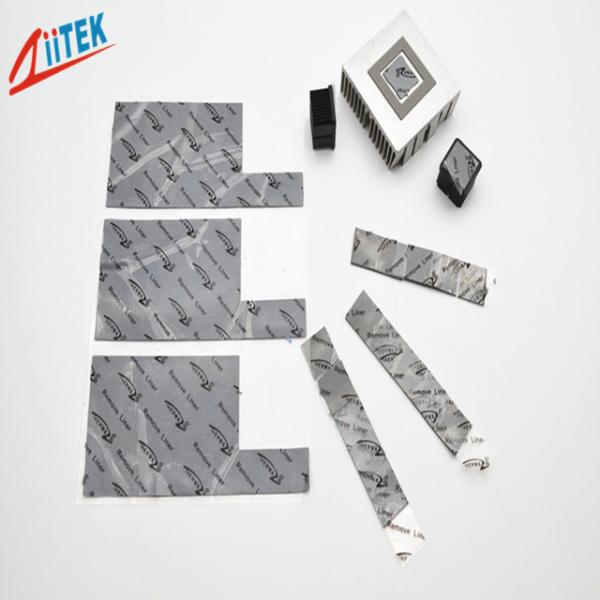

    Quality 3 W/m-K Silicone Rubber Thermal Gap Filler For Automotive Engine Control Units45 Shore 00 TIF100-30-02s for sale
