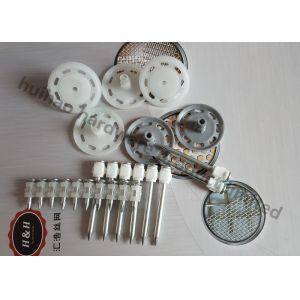

0.300" Insulation Fixing Drive Pins With Plastic Washers For
Pneumatic Stapler
0.300" head drive pins - standard pins with 0.145" shank diameter.
0.300" Insulation Fixing Head Drive Pins introduction
drive pins with 0.300" diameter head are designed for permanently
fastening a fixture to concrete, some types of masonry
and A36 or A572 structural steel. drive pins are manufactured with
a 0.145" diameter shank in various lengths. knurled
shank designs are available to increase performance in steel base
materials. a plastic flute is mounted over the point to
retain the drive pin in the fastener guide of the tool providing
guidance during the driving operation.
0.300" Insulation Fixing Head Drive Pins specification:
| shank length | shank diameter | std.box | std.carton |
| 1/2" | 0.145" | 100 | 5000 |
| 5/8" | 0.145" | 100 | 5000 |
| 3/4" | 0.145" | 100 | 5000 |
| 3/4" black | 0.145" | 100 | 5000 |
| 1" | 0.145" | 100 | 5000 |
| 1- 1/4" | 0.145" | 100 | 1000 |
| 1-1/2" | 0.145" | 100 | 1000 |
| 2" | 0.145" | 100 | 1000 |
| 2-1/4" | 0.145" | 100 | 1000 |
| 2-1/2" | 0.145" | 100 | 1000 |
| 3" | 0.145" | 100 | 1000 |
0.300" Insulation Fixing Head Drive Pins with 3/4" washer
| shank length | shank diameter | std.box | std. carton |
| 3/4" | 0.145" | 100 | 5000 |
| 2-1/2" | 0.145: | 100 | 1000 |
0.300" Insulation Fixing Head Drive Pins with 7/8",1" washer
| shank length | shank diameter | std.box | std. carton |
| 1" | 0.145 | 100 | 1000 |
| 1-1/4" | 0.145 | 100 | 1000 |
| 1-1/2" | 0.145 | 100 | 1000 |
| 2" | 0.145 | 100 | 1000 |
| 2-1/2" | 0.145 | 100 | 1000 |
| 3" | 0.145 | 100 | 1000 |
gereral application and use
attaching steel to concere, block or steel
attaching wood members to concrete, block or steel
attaching accessories to concrete , block or steel
1. consists of insulation fastener and drive pins.
2.insulation fastener which is made of 100% original raw material
has the characteristics of not combustion-supporting; it has
the unique design of tooth shape that can effciently isolate the
drive pin annd mortar;stop the heat bridge effect.
3.adopting the patented step shank design can get the best value of
drive pin's penetrability and reduce the destructiveness to the
base material;we use high quality steel to manufacture the drive
pins which ensure the nail body high strength, high tenacity and
festening much safer and more reliable.
