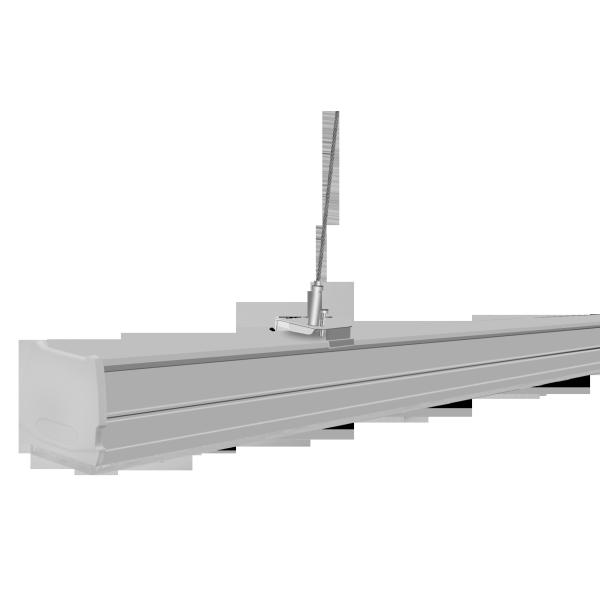

5 years warranty 4ft/50W Linkable LED Linear Trunk System 130Lm/W
supermarket suspended dimmable lighting fixture
(I) Product Features:
* Luminaire coated in an environmentally friendly polyester powder
formulated for a durable and long-lasting color in a silvery, black
and white finish. No toxic heavy metals, VOC, or mercury were used
in the design;
*Constant current driver is isolated away from the heat source of
the LEDs, keeps the stability and
performance of the driver for long life;
* Constructed in a heavy-duty 6063 aluminum and PMMA, durable and
excellent heat dissipation efficiency;
* Adopting SMD3030 LEDs light source, high output lighting
efficiency 130LPW, high Color Rendering Index(CRI>83Ra),
excellent heat dissipation, low light decay;
* High quality Meanwell / Tridonic power supply,
AC100V~240V,50/60Hz input voltage, constant voltage or
constant current output, quick responds, no flicker, lightning
protection, PFC function available, 0-10V, DALI intelligent dimming
available;
* Suspended / Surface mounted / Linkedable with trunk rail system
for different occassions;
* PIR sensor, Emergency, 1-10V, DALI, Track Light is available via
5/7/11 cores with 2.5mm2 cooper cable cross section;
* 30°/60°/90°/Double 25°, asymmetric L or R light distribution 2nd
optics design for option;
* CE,RoHS listed, SAA, TUV pending;
* 5 years guarantee;

(II) Applications:
* Train, Bus station and Office;
* Workshops and warehouse;
* Supermarkets;
* Exhibition center;
* Airport Hall;
* Underground garage;
(III) Quick View:
1. 50W/4ft, 6,000-6,500lm, IP40;
2. Inputing rating: AC100-240V 50/60HZ;
3. Beam Angle: 30°/60°/90°/Double 25°,asymmetric L or R;
4. Size: 1160(L)*73(W)*75(H)mm;
5. CE, RoHS listed,SAA,TUV pending;
6. 5 years guarantee;
| Item No. | KD-LLF050-CE4 | Housing color | Silver/Black |
| Input Voltage | AC100-240V 50/60HZ | CRI | >83Ra |
| Power | 50W | IP Ranking | IP40 |
| Working Temp | -20 to +45℃ | Power Factor (PF) | >0.95 |
| Luminous Flux | 6000-6500lm | Material | Al+PMMA |
| LED QTY | 132PCS | Light Source | SMD3030 |
| Beam Angle | 30°/60°/90°/Double 25°, asymmetric L or R | LED Efficiency | 100/130LPW for option |
| CCT | 2700-6500K | Certificate | CE, RoHS listed, TUV,SAA pending |
| Dimension | 1160(L)*73(W)*75(H)mm | Warranty | 5 years |
| Weight | 460g | Driving | /MEANWELL |
| Delivery | |
| Delivery Time | 5-7 working days for sample orders, 10-15working days for mass
orders |
| Payment | T/T,L/C, Western Union, PAYPAL |
| Payment Terms | 30% T/T in advance, balance before shipment |
| MOQ | 30m |


| About Package | ||
| Package Carton | Neutral Package/OEM Package | |
| Components Included | Name | Qty”/PCS |
| LED Linear Trunking Rail System | 1 | |
| Specification | 1 | |
| Warrantee Card | 1 | |
