New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz

    Buy cheap New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz from wholesalers

    Buy cheap New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz from wholesalers
    • Buy cheap New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz from wholesalers

    New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz

    Ask Lasest Price
    Brand Name : KOE
    Model Number : TX26D200VM5BAA
    Certification : ISO9001
    Price :
    Payment Terms :
    Supply Ability :
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz

    New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz


    TX26D200VM5BAA Basic Information

    Panel ModelTX26D200VM5BAA
    Panel BrandKOE
    Descritiona-Si TFT-LCD ,10.4 inch, 800×600
    Panel Typea-Si TFT-LCD
    Operating Temperature-30 ~ 80 °C
    Storage Temperature-30 ~ 80 °C
    Vibration Resistance2.0G (19.6 m/s²)
    RemarksIPS-Like

    Packaging & Delivery

    Packaging Details:

    Antistatic bag + Bubble bag + Foam box + Carton box

    Delivery Detail:

    1-3 working days after payment confirmed

    TX26D200VM5BAA Mechanical Features

    Dot Resolution800(RGB)×600 (SVGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density96 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.088×0.264 mm (H×V)
    Pixel Pitch0.264×0.264 mm (H×V)
    Weight380g (Typ.)
    Active Area211.2×158.4 mm (H×V)
    Bezel Area214.2×161.4 mm (H×V)
    Outline Dimension230×180.2 mm (H×V)
    Outline Depth10.6 (Max.) mm
    Holes & BracketsRear mounting Pole (4-Φ3.0)
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.

    TX26D200VM5BAA Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness1000 cd/m² (Typ.)
    Contrast Ratio400 : 1 (Typ.) (Transmissive)
    Display Color16.7M (8-bit)
    Color Gamut50% NTSC (CIE1931)
    Response Time20 (Typ.)(Tr+Td)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White color ChromaticityWx:0.290; Wy:0.340
    White Variation1.43 (Max.)(9 points)
    Sunlight ReadableY

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.


    TX26D200VM5BAA Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanYes (180°)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    SX19V001-ZZAKOE7.5"640×480
    SX19V001-Z1AKOE7.5"640×480
    SX19V001-Z1KOE7.5"640×480
    SP24V001-ZZAKOE9.4"640×480
    SP16H001-TKOE6.5"640×240
    SP10Q006-TKOE3.8"240×320
    SP10Q004-TKOE3.8"240×320
    SP10Q003-TKOE3.8"240×320

    We also have other industrial LCD panels, pls contact to us for the further information

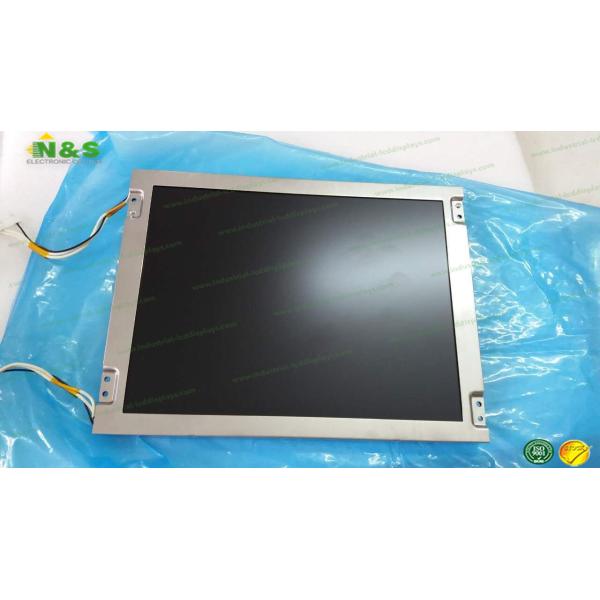

    TX26D200VM5BAA pictures


    Quality New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz for sale
