    TCG121XGLPBPNN-AN40 Kyocera a-Si TFT-LCD ,12.1 inch, 1024×768 for 60Hz

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG121XGLPBPNN-AN40
    Certification : ISO9001
    Price :
    Payment Terms :
    Supply Ability :
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    TCG121XGLPBPNN-AN40 Kyocera a-Si TFT-LCD ,12.1 inch, 1024×768 for 60Hz

    TCG121XGLPBPNN-AN40 Kyocera a-Si TFT-LCD ,12.1 inch, 1024×768 for 60Hz


    TCG121XGLPBPNN-AN40 Basic Information

    Panel ModelTCG121XGLPBPNN-AN40
    Panel BrandKyocera
    Descritiona-Si TFT-LCD ,12.1 inch, 1024×768
    Panel Typea-Si TFT-LCD
    Operating Temperature-30 ~ 80 °C
    Storage Temperature-30 ~ 80 °C

    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.

    TCG121XGLPBPNN-AN40 Mechanical Features

    Dot Resolution1024(RGB)×768 (XGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density105 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.080×0.240 mm (H×V)
    Pixel Pitch0.240×0.240 mm (H×V)
    Weight555g
    SurfaceAntiglare
    Active Area245.76×184.32 mm (H×V)
    Bezel Area249.0×187.5 mm (H×V)
    Outline Dimension260.5×203 mm (H×V)
    Outline Depth9.1/10.9 (Typ./Max.) mm
    Holes & BracketsSide mounting holes (6-M3) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.

    TCG121XGLPBPNN-AN40 Optical Features

    Display ModeAWV, Normally Black, Transmissive
    Brightness1200 cd/m² (Typ.)
    Contrast Ratio750 : 1 (Typ.) (Transmissive)
    Display Color262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Gamut51% NTSC (CIE1931)
    Response Time18/12 (Typ.)(Tr/Td)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Viewing DirectionSymmetry
    White color ChromaticityWx:0.320; Wy:0.345
    Sunlight ReadableY

    Why do you choose us?

    • Quick response to clients' enquiries within 24hrs.

    • More than 6-year experience in LCD screen field and professional team communication team.

    •Value quality and long-term cooperation to reach win-win relationship.

    TCG121XGLPBPNN-AN40 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanYes (180°)

    Below are our other LCD panels stock for your easy reference:

    DMF-50316NF-FW-APNKyocera5.2"240×6410
    KHB084SV1AA-G83Kyocera8.4"800×600120
    KCB104VG2BA-A41Kyocera10.4"640×48010
    KCG057QV1DB-G870Kyocera5.7"320×24010
    KG057QVLFF-G00Kyocera5.7"320×24010
    KCT10276BSTT-X4Kyocera15.0"1024×76810
    KCS6448JSTT-X4Kyocera10.4"640×48010
    KCS072VG1MC-A20Kyocera7.2"640×48010

    We also have other industrial LCD panels, pls contact to us for the further information

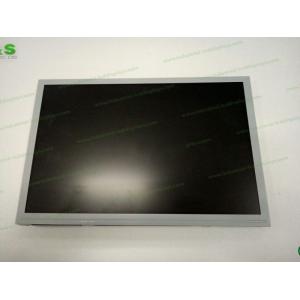

    TCG121XGLPBPNN-AN40 pictures
