New and original R190EFE-L53 INNOLUX a-Si TFT-LCD ,19.0 inch, 1280×1024 for Medical Imaging

    Buy cheap New and original   R190EFE-L53  INNOLUX  a-Si TFT-LCD ,19.0 inch, 1280×1024  for Medical Imaging from wholesalers

    Buy cheap New and original   R190EFE-L53  INNOLUX  a-Si TFT-LCD ,19.0 inch, 1280×1024  for Medical Imaging from wholesalers
    • Buy cheap New and original   R190EFE-L53  INNOLUX  a-Si TFT-LCD ,19.0 inch, 1280×1024  for Medical Imaging from wholesalers
    • Buy cheap New and original   R190EFE-L53  INNOLUX  a-Si TFT-LCD ,19.0 inch, 1280×1024  for Medical Imaging from wholesalers
    • Buy cheap New and original   R190EFE-L53  INNOLUX  a-Si TFT-LCD ,19.0 inch, 1280×1024  for Medical Imaging from wholesalers

    New and original R190EFE-L53 INNOLUX a-Si TFT-LCD ,19.0 inch, 1280×1024 for Medical Imaging

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : R190EFE-L53
    Certification : ISO9001
    Price :
    Payment Terms :
    Supply Ability :
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    New and original R190EFE-L53 INNOLUX a-Si TFT-LCD ,19.0 inch, 1280×1024 for Medical Imaging

    New and original R190EFE-L53 INNOLUX a-Si TFT-LCD ,19.0 inch, 1280×1024 for Medical Imaging


    R190EFE-L53 Basic Information

    Panel ModelR190EFE-L53
    Panel BrandINNOLUX
    Descritiona-Si TFT-LCD ,19.0 inch, 1280×1024
    Panel Typea-Si TFT-LCD
    Operating Temperature0 ~ 50 °C
    Storage Temperature-20 ~ 60 °C
    RemarksBlue base

    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.

    R190EFE-L53 Mechanical Features

    Dot Resolution1280(LCR)×1024 (SXGA)
    Pixel ConfigurationLCR Vertical Stripe
    Pixel Density86 PPI
    Aspect Ratio5:4 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.098×0.294 mm (H×V)
    Pixel Pitch0.294×0.294 mm (H×V)
    Weight2.11/2.31Kgs (Typ./Max.)
    SurfaceAntiglare (Haze 25%), Hard coating (3H)
    Active Area376.32×301.06 mm (H×V)
    Bezel Area380.3×305.0 mm (H×V)
    Outline Dimension396×324 mm (H×V)
    Outline Depth20.1/25.6 (Typ./Max.) mm
    Holes & BracketsSide mounting holes (4 pcs) on left right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout

    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    Shipment:

    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.

    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

    (4) Delivery time is approximate:

    ------Via DHL, Fedex, UPS: 3-7working days

    ------Via EMS:7-15 working days

    ------Via Direct Express Line:1-3 working days.

    R190EFE-L53 Optical Features

    Display ModeDD-IPS, Normally Black, Transmissive
    Brightness1400 cd/m² (Typ.)
    Contrast Ratio1000 : 1 (Typ.) (Transmissive)
    Display ColorGrayscale (8-bit)
    Response Time15/15 (Typ.)(Tr/Td)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Viewing DirectionSymmetry
    White color ChromaticityWx:0.265; Wy:0.305
    Sunlight Readable

    Y


    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    R190EFE-L53 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanNo
    Total Power Consumption27.74W

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    F050A07-6T2Innolux5.0"720×1280
    V650HP1-PS6 Rev.C6Innolux65"1920×1080
    P101LCA-3P1Innolux10.1"1920×1200
    V650HP2-PS5Innolux65"1920×1080
    N156HGE-DB1Innolux15.6"1920×1080
    V500DJ4-QS1Innolux50"3840×2160
    V500DJ2-QS5Innolux50"3840×2160
    V400DJ1-QS5Innolux40"3840×2160

    We also have other industrial LCD panels, pls contact to us for the further information

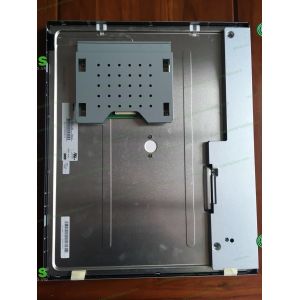

    R190EFE-L53 pictures
