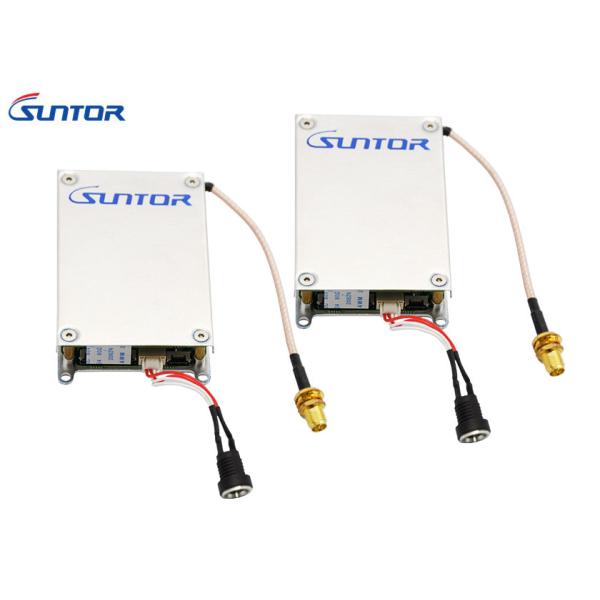

Lightweight Long range drone video transmitter board , cofdm hd wireless transmitter 720P

Name: Lightweight Long range drone video transmitter board cofdm hd wireless transmitter 720P
Brand: SUNTOR
Price: 1 USD

Add to Cart

Lightweight Long range drone video transmitter board , cofdm hd wireless transmitter 720P

Brief Desscription:

Advantages:

Transmit one road high quality 720P video and one TTL serial data at the same time.
High speed transmission in fast mobile circumstance.
AES encrypted transmission
Short system delay time: less than 25ms, almost real time transmission.
Applied to all kinds of drone with small size ,light weight ,low power consumption

Application:
As its small size, lightweight and low RF power, the transceiver is widely used in multiple rotor drone, flight test.

Parameter

Frequency	2.4GHz(2.402-2.478GHz)
Wireless Fault-tolerant	LDPC FEC
RF Transmitted Power	27dBm (Air to ground 5km)
Power Consumption	TX: 7Watts
Power Consumption	RX: 5Watts
Frequency Bandwidth	2/4/6/8MHz
Latency	≤12-30ms
Video Color Space	Default 4:2:0 optional: 4:2:2/4:4:4
Antenna	1T1R
Video Input/output Interface	High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Video Compressed Format	H.265 +TS
Bit rate Adjustment	DIP or SPI2MCU
Encryption	WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK)
Transmission Distance	Air to ground 5km
Start-up time	< 25s
Two-way function	Support video and duplex data simultaneously
Data	Support Duplex TTL RS232/485 Data Transmitting
Power supply	DC 7- 18V
Interface	720P High Definition Multimedia Interface Mini RX x1
	S1 TTL bidirectional serial port x1
	RF SMA
	Power Input x1
Indicator Light	High Definition Multimedia Interface input/output Status
	Transmitting and receiving
	Video board working Status
	Power
Temperature Range	Operating temperature:0°C ~+ 85°C
Temperature Range	Storage temperature:-10°C ~+ 90°C
Appearance Design	CNC technology/ double aluminum alloy shell with waterproof design
Dimension	73×48×14mm
Weight	Tx: 58g/Rx: 58g
