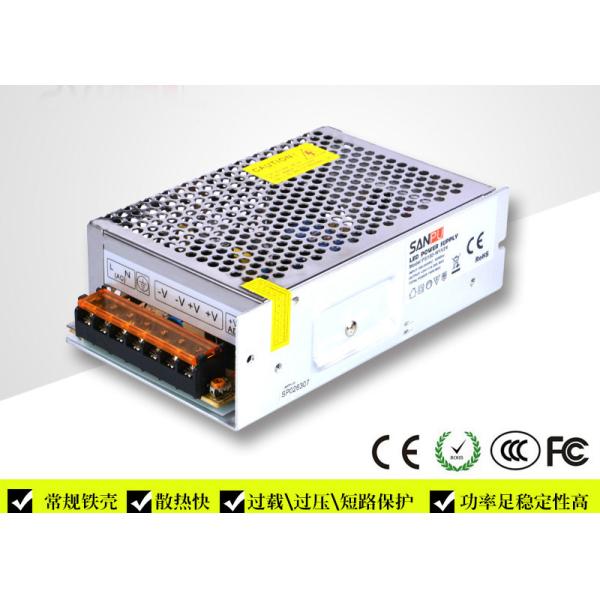

    Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing

    Ask Lasest Price
    Brand Name : Vasten
    Model Number : PS150-W1V12
    Certification : CE & RoHS
    Price : Negotiation US$/Meter
    Payment Terms : T/T, Paypal, Western Union
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing

    CE ROHS Metal 150W Switch Mode LED Power Supply

    Specifications

    Metal 150W switch mode led power supply
    International AC input
    100% full load burn-in test
    Built-in EMI filter

    Features:

    1. Metal 150W switch mode led power supply.

    2. The product consists of indoor type and outdoor type.

    3. Convenient wiring.

    4. Abnormality protection function : short circuit ,over load ,over voltage,over temp .

    5. Various types for your choice:Constant Voltage Power supply and Constant Current Power supply.

    6. Quality assurance: 2 years warranty.

    7. High efficiency .

    8. International AC input .

    9. Built-in EMI fiter .

    10.100% full load burn-in test .


    PS150-W1V

    MODEL5V150W12V 150W24V150W48V150W
    OUTPUTDC VOLTAGE5V12V24V48V
    RATED CURRENT30A12.5A6.5A3.2A
    CURRENT RANGE0~30A0~12.5A0~6.5A0~3.2A
    RATED POWER150W150W150W150W
    RIPPLE& NOISE (MAX.)NOTE2100mV120mV120mV200mV
    VOLTAGE TOLERANCENOTE3±1%±1%±1%±1%
    SETUP , RISE TIME200ms/220VAC 50ms/220VAC
    HOLD UP TIME(Typ.)20ms/220VAC
    INPUTVOLTAGE RANGE85~132VAC/170~264VAC
    FREQUENCY RANGE47~63Hz
    POWER FACTOR(Typ.)PF>0.6/220VAC
    EFFICIENCY(Typ.)81%84%85%87%
    AC CURRENT(Typ.)3.2A/115VAC 1.6A/230VAC
    INRUSH CURRENT(Typ.)COLD START 20A/115VAC 40A/230VAC
    PROTECTIONShort circuitProtection type : recovers automatically after fault condition is removed
    Over load105~135% hiccup mode , auto-recovery
    Over voltage115%~135% Cut off the output , auto-recovery
    ENVIRONMENTWORKING TEMP-20°C~ +60°C
    WORKING HUMIDITY20%~90%RH
    STORAGE TEMP , HUMIDITY-40°C~+85°C,10%~90%RH
    SAFETY &EMCSAFETY STANDARDSCE,ROHS
    WITHSTAND VOLTAGEI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
    EMC Test StandardsConform to EN60950 GB4943 UL60950 Safety standards
    Conform to GB9254 EN55022 EMC standards
    NOTE1.All paraments NOT specially mentioned are measured at 220VAC input ,reted load and 25°C of ambient temperature
    2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 10 uf parallel capacitpr .
    3.Tolerance : includes set up tolerance , line regulation and load regulation .
