    Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity

    Ask Lasest Price
    Brand Name : TENG TIAN
    Model Number : ZJ1600* (0.4-3.0)mm
    Certification : CE / ISO9001 / BV
    Price : $100000 to $1 million
    Payment Terms : T/T,L/C
    Supply Ability : 50 sets / year
    Delivery Time : 3 months
    • Product Details
    • Company Profile

    Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity

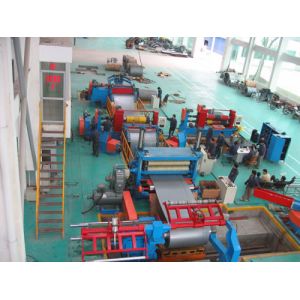

    Full Automatic High-Speed High-Precision Slitting Line
    The Slitting Line is used to slit the steel strip in coil into several narrow strips of certain size. The slit strips are then rewound into coils, for which welded pipes, cold-formed sections and press work are manufactured.
    This line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc. This line is composed of coil car, uncoiler, slitter, scrap winder, shearer cutting coil head or tail, tension pad and recoiler, etc. as well as pendulum middle bridge, pinch device, steering device. This line is an auto coil processing equipment which integrate mechanical, electrical, hydraulic, pneumatic all together.


    Working process
    Coil-loading — Double-mandrel uncoiler — Coil-head-feeding, press & shoveling — Double-roller pinch feeding, five-roller leveling — End-cutting — Hole Accumulator(1) — Strip-aligning — Disc shearing — Scrap reeling — Hole Accumulator(2) — Pre-separator/Tensioner/length-measuring roller — Recoiling/Coils press & separator — Coils-discharging — Hydraulic control — Electric control


    Main Technical Parameter

    NameModel2×13002×16003×13003×1600
    Coil Thickness(mm)0.3-20.3-20.5-30.5-3
    Coil Width(mm)600-1300600-1600600-1300600-1600
    Slitting Strips2-202-202-152-15
    Strip Width Precision(mm)±0.1±0.1±0.15±0.15
    Line Speed(m/min)10-12010-12010-12010-120
    Coil Weight(T)10152030
    Coil I.D.(mm)Ф508Ф508Ф508,Ф610Ф508,Ф610
    Recoiling I.D.(mm)Ф508Ф508Ф508Ф610
    Main Shaft Dia.(mm)Ф220Ф240Ф240Ф240
