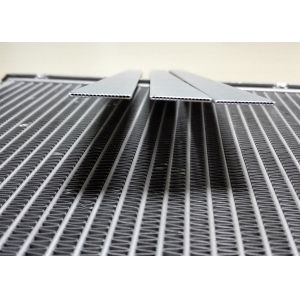

Micro-Channel Flat Aluminum Tube / Micro-Multiport Extrusion
Aluminum Tube / MPE Aluminum Tube
Product Introduction:
Micro-multiport extrusion aluminum tube (MPE tube) is mainly used
for the production of heat exchangers. Due to its high
corrosion-resistance & good heat conductivity, MPE tube is
particularly well suited for the use in evaporators & condensers.
MPE tube is required increased burst strength and better heat
conductivity for an optimized product size. To meet the market
requirement, we developed zinc-coated & flux coated MPE tubes, it
can be supplied in the form of coils, or fixed length by
non-cutting separation method.
The Micro-multiport extrusion aluminum tube (MPE tube) is unique
tubes developed with the highest manufacturing quality and is
characterized by the following properties:
1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality
Detailed Product Description:
| Alloy: | 3003,3102,1100,1050 | Temper: | O,F,H111,H112 |
|---|
| Shape: | Flat | Applications: | Radiators,Condensers,Evaporators |
|---|
| Surface: | Zinc-spraying / without Zinc-spraying |
|---|
Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Our aluminium tubes are found mainly in applications such as
condensers and evaporators for air conditioning systems as well as
liquid lines for air conditioning, heater cores and radiators for
engine cooling systems, charge air coolers and other cooling
systems.
The Multi Port Extruded profiles are available in various sizes and
alloys, ensuring the best properties for the purpose required.
| MPE | Width | 7-120mm |
| Height | 1-10mm |
| Wall thickness | 0.2-0.5mm |
| Other non-standard dimensions are available upon request. |
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.
