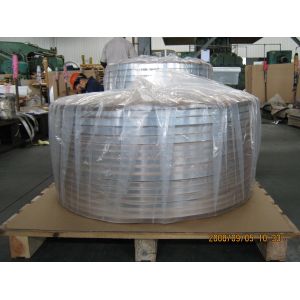

1145 O 0.15mm x 400mm Aluminum packaging foil for RF cable shelding
1. Our chemical composition:
Alloy | Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 1145 | 0.55 | 0.05 | 0.05 | 0.05 | - | － | 0.03 | 1 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | － | － | 2 |
2. Our mechanical property:
| Alloy Code | temper | Tensile Strength Rm(MPa) | Yield Strength Rp0.2(Mpa) | Extend Ratio A50(%) |
| 1145 | O | 60-100 | ≥15 | ≥23 |
| 1060 | O | 60-110 | ≥15 | ≥23 |
:
3. Application
Radio-shielding application of cables, wrapping and shielding
application of cable. Cable foil is used as a skin for
heat-insulating and electromagnetic shielding to provide high
performance for Cable industry.
4. Specification of aluminium strip:
1) Alloy: 1050,1060 and etc.,
2) Temper: HO and etc.,
3) Thickness: 0.015-0.2mm
4) Width: 100 - 1250mm
5) I. D.: 300mm,400mm,500mm
6) Normal O. D.: 900-2000mm(max)
7) Electric conductivity:35.33569
8) Other sizes and specifications are available according to
customer's request
5. Features
1. Insulation shield for cable; It can be used for protecting the
high frequency transmission of telecommunication cable; power cable
and electric wire from the interference of electromagnetic and
radio wave;
2. Aluminum foil are widely used for coaxial cable shield and
electronic product like EHV cables and RF cables; shielding layer
of many other kinds cables;telephone lines and ventilation ducts,
etc;
3. Electromagnetic interference shielding;isolate electromagnetic
waves to prevent damage to the human
4. Good insulativity and shielding effectiveness to reduce
attenuation;avoid the voltage or current influence function;
5. Good thermal insulation; waterproof; cold resistance;Easy to
peel; stick force resistance;
