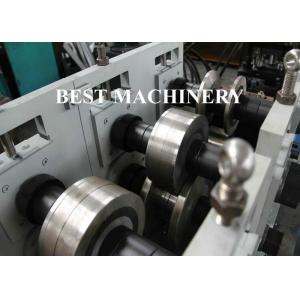

    Max 30 m/min Speed Cross T Bar Roll Forming Machine PLC Control

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY38x20
    Certification : CE/BV/SGS
    Supply Ability : 20 sets/month
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    Max 30 m/min Speed Cross T Bar Roll Forming Machine PLC Control

    Max 30 m/min Speed Cross T Bar Roll Forming Machine PLC Control


    Parameter


    1Name of commodity & specificationLight keel forming machine
    2Main motor power7.5kw, 3 phase
    3Hydraulic motor power4kw
    4Hydraulic Pressure10-12MPa
    5Voltage380V /3phase/ 50 HZ (or as your requirement)
    6Control SystemPLC Delta Inverter
    7Main Frame300mm H-Beam or 350mm
    8Backboard Thickness10mm
    9Chain Size20mm
    10Feeding Materialcolor steel coils
    11Feeding Thickness0.22mm-0.3mm
    12Feeding Width30mm 90mm
    13Effective width25*24mm
    14Productivity30m/min
    15Roll Station16 roll steps(according to different design)
    16Roller Diameter50mm(depend on different design)
    17Roller material45# steel
    18Cutter materialCr12 , quenched
    19Cr-Plating Size0.05mm
    20Overall Size6500×1400×1500mm
    21Total Weight4.0T
    22ComponentsManual Uncoiler-------------------1 set
    Guiding Platform------------------1 set
    Coil Strip Leveler------------------1 set
    Main Machine of Roll Forming------1 set
    Electric-Motor---------------------1 set
    Cutting Device--------------------1 set
    Hydraulic Station------------------1 set
    PLC Control-----------------------1 set
    Supporter Table-------------------1 set
    23WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table
    24Packagenude in the container
    25Minimum order quantity1 set




    ① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    ② Without visiting, we will send you user manual and video to teach you to install and operate.
    ③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



    After-sales service


    Technical Support


    Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.


    Spare Parts


    Promptly providing spare parts and wearing parts.


    Upgrade


    Improve technology and upgrade of equipments.
