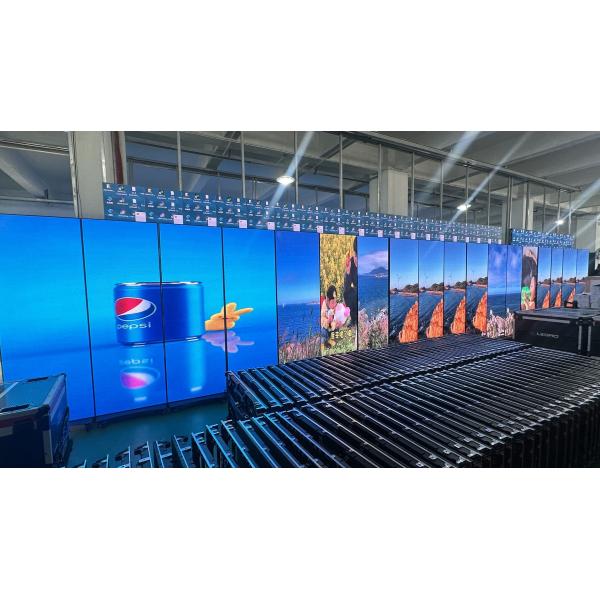

Transparent Indoor 1R1G1B LED Screen HD for shopping Centure
what is difference between SMD and DIP led display?
Surface mount LED is referred to as SMD. It is a diode packaged by
SMT technology and soldered on the surface of PCB board. It is
widely used in indoor projects.
Dual in-line package is referred to as DIP. The LED lamp foot is
soldered on the PCB to make it stable, so it is named DIP LED. It
is mainly used in outdoor projects.
Comparison between SMD and DIP. SMD adopts RGB three-color LED cup
technology, which has better color uniformity and wider viewing
angle. Usually SMD can make small-pitch pixels,
so for some high-resolution LED screens, SMD is the best choice.
DIP technology puts the LED foot on the PCB board, which has better
heat dissipation and higher brightness than SMD. Even in the sun,
DIP LED screen can display content well.
This is why people like DIP for outdoor use.
In terms of energy saving, SMD is a new technology with high
luminous efficiency and good heat dissipation, which saves more
than 30% energy than DIP.
In the past, SMD was only used for indoor LED display screens, but
with the breakthrough of technology in recent years, the brightness
of SMD has been greatly improved,
and the waterproof treatment has also been thoroughly solved.
Therefore, SMD is increasingly used in outdoor LED display screens
in the market.
Specifications :
| outdoor SMD P6 |
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 43222/m² |
| Module resolution | 27778 |
| Module size/mm | 192x192mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/13 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Technical service
(1) System and product training in the pre construction, in order
to have a thorough understanding of products;
(2) Provide installation training, be able to achieve the system
installation and maintenance;
(3) After the project will be application training, make users
grasp the use of the systematic hardware skillfully ;
(4) Users change , free training for new staff;
(5) We are responsible for the training of your staff's use;
Spare parts warranty period Configuration Guidelines
(1) Adequacy: With the specific equipment, spare parts allocation
adequate, ensure replacement in the first time of equipment
failure;
(2) Necessity: On the basis of previous maintenance experience, we
configure the spare parts are the key parts of the equipment, so as
to ensure the economic allocation;
(3) Economic practicality: In order to deal with the fault in the
shortest time, we configure the spare parts are complete module or
unit, through our training, the owners can easily replace the spare
parts, so as to ensure the normal operation of the system.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and
professional production ensure
our led display’s competitiveness.
FAQ
Q1.Can I have a sample order for the LED display?
A:Yes,we welcome sample orders to test and check quality.Both for
the module or the whole screen.
Q2.What about the lead time?
A:Order less than 100 square meters lead time to take 15 working
days
Q3.Do you have any MOQ limit for LED display orders?
A:Low MOQ,1 square meter or a module checking is available
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept EXW FOB CIF DDP and other shipping ways.It
usually takes 20~30 days on the sea.a few days for customs
clearance
Q5.How to proceed with an order for an LED display?
A:Firstly let us know your requirements or application.
Secondly,We quote according to your requirements or our
suggestions.
Thirdly customer confirms the design document and places a deposit
for the formal order.
Fourthly We arrange the production.
Q6.Is it OK to print my logo on the products?
A:Yes.Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7:Do you offer a guarantee for the products?
A:Yes,we offer 1-5 years warranty for our products.
