Vibration testing services For Lithium Battery Safety Testing With Test UL2054 And IEC 62133

    Buy cheap Vibration testing services For Lithium Battery Safety Testing With Test UL2054 And IEC 62133 from wholesalers

    Buy cheap Vibration testing services For Lithium Battery Safety Testing With Test UL2054 And IEC 62133 from wholesalers
    • Buy cheap Vibration testing services For Lithium Battery Safety Testing With Test UL2054 And IEC 62133 from wholesalers
    • Buy cheap Vibration testing services For Lithium Battery Safety Testing With Test UL2054 And IEC 62133 from wholesalers

    Vibration testing services For Lithium Battery Safety Testing With Test UL2054 And IEC 62133

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : EV206
    Certification : CE,ISO
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Vibration testing services For Lithium Battery Safety Testing With Test UL2054 And IEC 62133

    Vibration Test System For Lithium Battery Safety Testing With Test UL2054 And IEC 62133

    Random Vibration Test System​ Capabilities

    • Sine: 600 kgf (peak)
    • Random: 600 kgf (rms)
    • Shock: 1200 kgf (peak)
    • Frequency range: 2 Hz to 3000 kHz
    • Maximum Velocity: 2.0m/s
    • Maximum Acceleration: 100 G (half sine) with a bare armature
    • Maximum payload: 200 kg
    • Maximum displacement: Shock: 51 mm (p-p)

    The electromagnetic vibration test system is associated by the shaker, high power amplifier and multi-functional controller. If conforms to all military, national and commercial vibration testing specifications and is an essential tool for modernized product design, production, QC & QA works. Using it would make your product be the best. The vibration response bandwidth is big and control precision is high; able to simulate all waveforms and specifications; easy to control; good extendibility and easy to maintain.


    • Coil structure earns Taiwan & USA patents.
    • Slip table is driven by linear low-noise hydraulic pump.
    • Side & bottom plates are made of cast steel; own the feature of high stiffness and low resonance.
    • Machine body is under air-bellow & hydraulic damper protection; no anchor required.
    • Machine body is stable and won’t influence floor structure or interfered by external vibration source..
    • 2 ～ 5,000 kgF (10,000kgF~Max)
    • DC~2,000 Hz option(20,000Hz~Max)


    Random Vibration Test System​Specification:


    Model
    EV103
    EV203
    EV106
    EV206
    EV210
    EV220
    Frequency(Hz)
    2-4000
    2-2500
    2-3000
    2-3000
    2-3000
    2-2500
    Max Exiting Force(kg.f)
    300
    300
    600
    600
    1000
    2000
    Max. Displacement
    (mmp-p)
    25
    38
    25
    50
    50
    50
    Max. Acceleration(g)
    100
    100
    100
    100
    100
    100
    Max. Velocity(cm/s)
    200
    120
    180
    200
    200
    200
    Payload(kg)
    110
    120
    200
    200
    300
    400
    Armature Mass(kg)
    3
    3
    6
    6
    10
    20
    Armature Diameter(mm)
    φ150
    φ150
    φ200
    φ200
    φ240
    φ320
    Cooling Method
    Forced Air Cooling
    Vibration Generator Weight(kg)
    460
    460
    720
    920
    1100
    1600
    Vibration Generator Dimension L*W*H(MM)
    750*560*670
    750*555*670
    800*600*710
    800*600*710
    845*685*840
    1200*870*1100
    Power Amplifier
    Amp3k
    Amp3k
    Amp6k
    Amp6k
    Amp12k
    Amp22k
    Cooling Method
    Forced Air Cooling
    Power Amplifier Weight(kg)
    250
    250
    320
    320
    350
    500
    Power Amplifier Dimension L*W*H(MM)
    800*550*1250
    Utility Requirements
    3-phase AC380V ±10% 50Hz
    Aggregate Capacity(KW)
    8
    9
    18
    20
    25
    35

    Customer Services


    Presales:

    • Technical consultation: test method, laboratory planning and suggestion.
    • Equipment selection: selection scheme, FAQ.
    • Product testing scheme.


    In-Sales:

    • Customer communication and progress report.
    • Guidance for pre-installation preparation, equipment commissioning and test run.
    • Calibration (when Third Party’s verification is required).


    After-Sales:

    • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
    • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
    • Technical support: special paid services are provided according to customer’s needs.

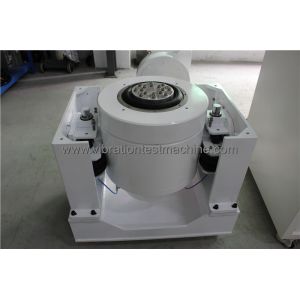

    Random Vibration Test System​ Images:
