High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards

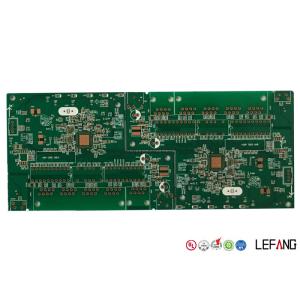

RoHS Printed Circuit Board for Power Bank Board High TG230 Double Sided Board

For the high TG230 double sided PCB Board, the board thickness is 1.6 mm and the copper thickness is 1 OZ / 35 µm. Also, the surface treatment of this double sided PCB Board is OSP. Its minimum aperture is 0.3 mm, and the line width and space is 0.1 mm.

Technical Data

Item	Details
Max layer count	20 L
Max board thickness	6.0 mm
Max aspect ratio	10 : 1
Max copper thickness	6 OZ
Max dimension	600 * 700mm
Min thickness of 4 layers PCB	0.4 mm
Min hole / pad	0.15 / 0.35mm
Hole location accuracy	+ / - 0.05mm
PTH hole tolerance	+ / - 0.05mm
Min line width and line space	0.065 / 0.065mm
Surface treatment	HASL / HASL lead free, OSP Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, ENEPIG (electroless nickel - electroless palladium - immersion gold)

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of quality Raw Materials will be used?

Board Brand	ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion	Rohm & Haas, Atotech, Umicore
Printing Ink	Taiyo, Rongda
Dry Film	Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Single Sided PCB
Single sided PCB contains only one layer of conductive material, where components are focused on one side, and the other side of the wire is concentrated.
Single sided PCB are the best choice for low density designs. They are easily designed and quickly manufactured to serve as the most cost effective platform in the industry.
For surface finishes, single sided boards are available for Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL), with operating temperatures range from 130℃ to 230℃.

Established in 1999, we own 3 modern factories in China.

Guangdong province - Shenzhen PCB Factory and Dongguan PCB Factory.

The total production capacity is 290,000 sqm/month.

Our main product is high precision multilayer circuit board.

Also we are experienced in PCBA.

Advanced equipment and professional technical support provide quality product.

Certifications obtained include :

We sincerely pursue win-win business with customer all the time!
