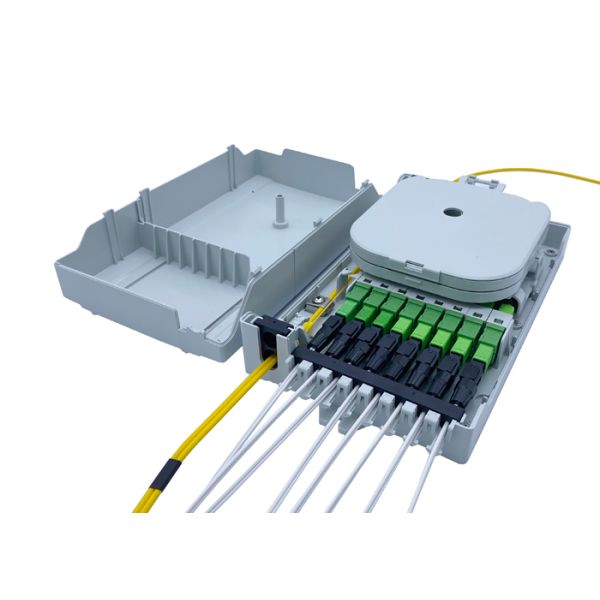

8 Ports SC Fiber Optic Distribution Box Go Through Design In FTTH GPON CATV

8 Ports SC Fiber Optic Termination Box in FTTH, GPON, CATV, 1X8 Fiber Optic Splice Box


This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.

The entry 2ports can use multi-fiber cable maximum diameter 12mm. The output ports 8pcs FTTH 2x3mm drop cable or 3mm soft cable. Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.


Specification

FTB008 Fiber optic nap box Features

1. Whole box is made of engineering plastic ABS+PC brand new material, white color.
2. The lid of the box have round edges, and closed by allen screws, anti-theft, more safer.
3. Two covers, one is for front adapter operation, the other is for cable fusion and feeder cable in and out, independent space design, more secure and reasonable.
4. Opening of the lid will not affect the movement of the other parts of the box. Both cover is removable.
5. There is 1 splice tray for extra fiber, and max. Fusion 4cores single fiber.
6. All the metal parts is stainless steel AISI-303 and resistant to the corrosion in normal temperature.
7. Each adapter holder is individual, not a whole set of adapter panel. Each one can turn 360°degree, it is much easier to use, change adapters, or future maintainence.
8. All the materials used is non toxic and dermatologically safe.
9. The materials high quality ensure a minimum period of 20 years.
10. In front there is cable management rods for better operation.

FTB008 Fiber optic nap box product details




Fixed by Anti-loss cross screw 3pcs. And made of high quality ABS material.




Independent adapter holder, can 360 degree turn wall mount with screws
adapter should be no flange, shutter type can be ok sealing for outputs each
with label marks for better fiber management fiber management rods for cable outputs




For cable entry: 2pcs in and 2pcs out. it's rubber seal,better to dustproof. Suitable for 10mm indoor/outdoor cbale.
For cable exit: 8pcs rubber seal to dustproof, suitable for 2*5mm drop cable, 3mm indoor round cable.

The distribution cable can go through the box no need cut, better choice for ftth on-site construction.

How to choose the connector when installation?
1. It can be used of SC fast connector with drop cable

2. It can be used of SC connector patch cord with indoor cable

3. It can be used of SC connector with drop cable.

4. All kind of fast connector can be ok, but note total length should be ≤55mm.


Fiber optic terminal box Standard package

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.

Accessories like below:

• Cable nylon ties
• Heat shrinkable tube
• Wall mount expansion screws
• Sealing of inputs or outputs
• User manual
• Adapters or plc splitter

More similar 8ports indoor fiber access box are option, to meet your different needs.

Model#	FTB008	FTB008A	FTB008B	FTB008D
Dimension (W*D*H)	170*135*45 mm	235*125*45 mm	226*134*51mm	151.8*105.7*59mm
Max.Capacity	8 cores	24 cores	20 cores	12 cores
Cable ports	2 in, 8 out	4in, 8out	4in, 8out	1 in, 8 out
Splice tray quantity	1	2	2	1
Adapter	8	8	8	8
Direct-through design	Yes	Yes	Yes	Yes
