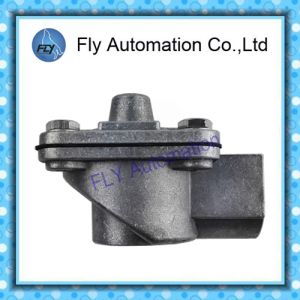

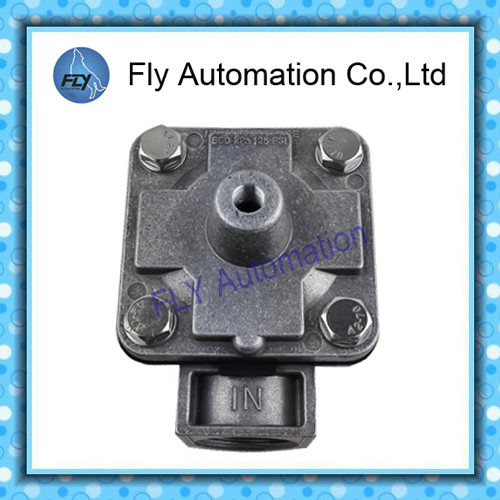

RCA25T FLY/AIRWOLF 1" K2501 Diaphragm repair kit Remotely piloted
Puulse valve Dust collector
Odering Code:
| Ordering Code | Port Size | Orifice | Flow Value |
| G Threaded | mm | Kv | Cv |
| CA20T/RCA20T | 3/4" | 20 | 12 | 14 |
| CA25T/RCA25T | 1" | 25 | 20 | 23 |
| CA35T/RCA35T | 1 1/4" | 40 | 36 | 42 |
| CA45T/RCA45T | 1 1/2" | 40 | 44 | 51 |
| CA50T/RCA50T | 2" | 50 | 76 | 88 |
| CA62T/RCA62T | 2 1/2" | 62 | 91 | 106 |
| CA76T/RCA76T | 3" | 76 | 144 | 167 |
More Detailed Description:
|
| Body | Aluminum (Diecast) |
| Washer | SS 304 |
| Armature | SS 430FR |
| Core and Plugnut | Stainless steel |
| Core Spring | SS 304 |
| Sealing & disc | NBR(nitrile/buna-n) |
| Screws | SS302 |
| Diaphragm | PA-6(Standard), fluororubber |
| Shading coil | Copper |
| Connector | DIN43650A |
| Voltage | DC: 24V, AC: 24V, 48V, 110V, 230V |
| Working Temperature | -20 to +85℃ Nitrile seals -29 to +232℃ fluororubber seals |
| Protection Class | IP65 |
| Coil Insulation Class | F |
| Working Pressure | 0.35-0.85Mpa |
| Recommended on time range | 50-500ms |
| Recommended time between pulses | 1 minute or Less |
Dimension:
Quality Standards
The company for the products are brand new original products, no
second-hand and refurbished products, or leave a compensable ten
and return the full amount, but the buyer due to our purchase of
model error is not responsible for returns, another of the
company's sales of products enjoy one year from the date of
shipment quality assurance, according to the original quality
standards, during warranty with product problems, need confirmation
testing by the manufacturer, the supplier to be solved, the demand
side due to storage, use, poor maintenance caused by lower-quality
product, and not raise objections.
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex,
TNL will be normal ways, If you require use of a courier, we can do
it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product
introduction, mounting, debugging, technical support and so on.
