AC110-230V Dc Motor Contactor SIMATIC PANEL PC 877 12" KEY STANDARD

    Buy cheap AC110-230V Dc Motor Contactor SIMATIC PANEL PC 877 12

    Buy cheap AC110-230V Dc Motor Contactor SIMATIC PANEL PC 877 12
    • Buy cheap AC110-230V Dc Motor Contactor SIMATIC PANEL PC 877 12

    AC110-230V Dc Motor Contactor SIMATIC PANEL PC 877 12" KEY STANDARD

    Ask Lasest Price
    Brand Name : SIEMENS
    Model Number : 6AV7811-0BB11-1AC0
    Payment Terms : T/T
    Supply Ability : 1000sets
    Delivery Time : 15 days after signing the contract
    • Product Details
    • Company Profile

    AC110-230V Dc Motor Contactor SIMATIC PANEL PC 877 12" KEY STANDARD

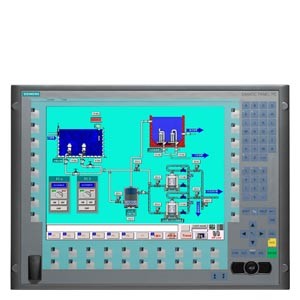

    SIEMENS 6AV7811-0BB11-1AC0 SIMATIC PANEL PC 877

    Technical data

    SIMATIC PANEL PC 877 12" KEY; 800X600; STANDARD AC110-230V, POWER CABLE EUROPE PENTIUM 4 2.8 GHZ; 533 MHZ FSB; 512KB SLC; 512MB DDR266 SDRAM (1X512MB); 80 GBYTE HDD EIDE 3.5" DVD-ROM; WINDOWS XP PROF MUI (EN,GE,FR,IT,SP,JP,CHN,KOR)
    Display
    Design of display12" TFT
    Screen diagonal12 in
    Resolution (pixels)
    ● Horizontal image resolution800 Pixel
    ● Vertical image resolution600 Pixel
    General features
    ● Expansion componentsUninterruptible power supply (USP), SIMATIC NET communication modules
    Backlighting
    ● MTBF backlighting (at 25 °C)50 000 h
    Control elements
    Input device
    ● Mouse, at frontYes
    Keyboard fonts
    ● Function keysYes
    — Number of function keys36
    ● alphanumeric keyboardYes
    Touch operation
    ● Design as touch screenNo
    Installation type/mounting
    central designYes
    distributed designYes; by means of remote kit
    maximum permissible installation angle +/-20°
    Supply voltage
    Type of supply voltage110/230 V AC (autorange) 50/60 Hz; optional 24 V DC (only with Pentium 4 mobile processor)
    Line frequency
    ● Rated value 50 HzYes
    ● Rated value 60 HzYes
    Power loss
    In full configuration24 V DC: max. 230 W, 230 V AC: max. 300 W (10 W included per slot)
    Processor
    Processor typeIntel Pentium 4 technology; Intel Celeron 2.0 GHz, Intel Pentium 4 2.8 GHz, Intel Pentium 4 mobile 2.2 GHz
    Drives
    Optical drivesoptional: DVD-ROM or DVD±R±RW combi drive; on rear, can be operated from side
    Diskette drive1.4 MB, on rear, can be operated from side
    Hard disk3.5" EIDE hard disk drive ≥ 40 GB, optional: 3.5" hard disk drive ≥ 80 GB, optional: 2x 2.5" hard disk module ≥ 40 GB, optional 2x 2.5" SATA-RAID1 hard disk module ≥ 60GB. All drives with vibration- and oscillation-resistant mountings.
