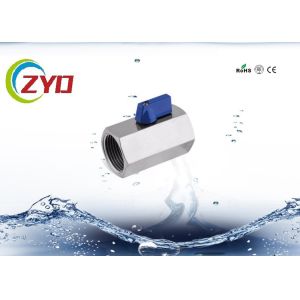

1/4" Female x 1/4" Male Thread NPT Lever Shut Off Valve
Water/Air/Pneuma Stainless Steel 316 Mini Ball Valve
Description:
· Size: 1/4”,3/8",1/2",3/4",1”
· Body Material: SS316/ASTM A351 CF8M/DIN 1.4408, SS304/ASTM A351
CF8/1.4308 · Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE
(25% Carbon Fiber), PPL etc.
· Max. Pressure:6.4MPa
· Temperature Range:-20℃~232℃
· Suitable Medium:Water,Oil,Gas and some Corrosive Liquids
· Blow-out Proof Stem/Reduced Port
· Investment Casting Body
· 1000PSI(PN64)W.O.G
· Delivery Time:Usually Within 30days after received T/T deposit
Payment
· Payment:Usually T/T, but L/C also acceptable.
· Certification: ISO9001-2008/KC/SON/CE/TS
Specification:

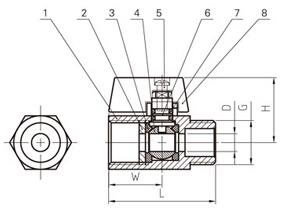

Accessory:
| 1 | Body | s/s304 or s/s 316 |  |
| 2 | Cap | s/s304 or s/s 316 |
| 3 | Seat | PTFE |
| 4 | Ball | s/s304 or s/s 316 |
| 5 | Screw | s/s304 or s/s 316 |
| 6 | Stem | s/s304 or s/s 316 |
| 7 | "O" ring | NBR |
| 8 | Handle | s/s304 or s/s 316 |
Size:
| NPS | G | D | L | W | H |
| DN6 | 1/4" | 7 | 42 | 23 | 26 |
| DN10 | 3/8" | 7 | 42 | 23 | 26 |
| DN15 | 1/2" | 9 | 46 | 23 | 28 |
| DN20 | 3/4" | 12 | 54 | 23 | 31 |
| DN25 | 1" | 15 | 62 | 23 | 34 |

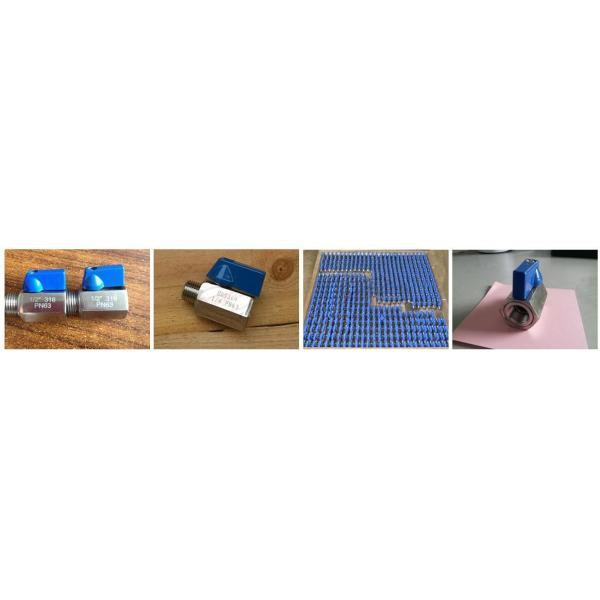

Production process:
Quality Control:
1. Inspection of the injection or casting
2. Leakage test after machining
3. Surface inspection after injection or polishing
4. Surface inspection after plating
5. Leakage test when assemble
6. Measuping for the finished products
Packing & Delivery
Packing Details : Packing, 50pcs/carton
Delivery Details : 5-40 days after order
