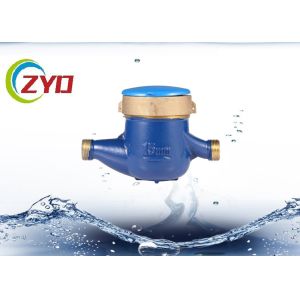

    Multi-jet, Vane Wheel Dry-dial Water Meter Water Passing Through The Pipeline

    Ask Lasest Price
    Brand Name : ZYD
    Model Number : ZYD-WM25
    Certification : CE
    Price : USD6
    Payment Terms : T/T, L/C
    Supply Ability : 100000PCS/MONTH
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

    Multi-jet, Vane Wheel Dry-dial Water Meter Water Passing Through The Pipeline

    Multi-jet, Vane Wheel Dry-dial Water Meter Water Passing Through The Pipeline


    DESCRIPTION:

    This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.

    Compliance with standard: ISO 4064 Class B


    SPECIFICATION:


    Handheld 4-20ma output capsule sealing anti theft for security seal mechanism electronic hardness tap flow bluetooth water meter
    Type
    Class
    Min flow rate Q₁(m³/h)
    Transitional flow rate Q₂(m³/h)
    Permanent flow rate Q₃(m³/h)
    Overload
    flow rate
    Q4(m³/h)
    WM-15
    B
    0.03
    0.12
    1.5
    3
    WM-20
    B
    0.05
    0.2
    2.5
    5
    WM-25
    B
    0.07
    0.28
    3.5
    7
    WM-32
    B
    0.12
    0.48
    6
    12
    WM-40
    B
    0.2
    0.8
    10
    20
    WM-50
    B
    0.45
    3
    15
    30

    Working condition:Water temperature: 0.1℃～40℃ for cold water meter .0.1℃～90℃ for hot water meter.

    Water pressure : ≤1.0Mpa or1.6Mpa


    Maximum permissible error:


    (1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
    (2) in the upper zone from qt inclusive up to and including qs is ±2%;
    Hot water meter ±3%
    Type
    Wheel (pcs)
    Length (mm)
    Width (mm)
    Height (mm)
    Weight (kg)
    Qty/ctn (pcs)
    carton size (m³)
    WM-15B
    5
    165
    98
    113
    1.65
    10
    0.025
    WM-15M
    8
    165
    87
    100
    1.3
    20
    0.041
    WM-20B
    5
    195
    98
    115
    1.85
    12
    0.033
    WM-20M
    8
    190
    87
    99
    1.5
    20
    0.048
    WM--25B
    5
    225
    104
    123
    2.6
    5
    0.024
    WM--32B
    5
    260
    104
    116
    3
    10
    0.043
    WM--40B
    5
    300
    125
    156
    5.5
    2
    0.017
    WM-50B
    5
    300
    125
    165
    7.5
    2
    0.017

    Main Features:

    1) Multi-jet, dry-dial, easy for maintenance

    2) Magnetic drive reliable characteristic, long working life

    3) Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service

    4) Technical data conform to international standard ISO4064 Class B


    Quality and inspection :


    *We promise supply you high quanlity and durable goods for you.
    *Our worker will check everyone accessories before hand-assembled
    *Our quality inspector will check everyone product one by one before packing
    *Regular checking on line from production in each workshop


    Packaging and Shipping:

    1) The package standard : standart export carton, box .

    2) If customer has special requirement. it is available to provide

    the colorful package against the design of customer.
