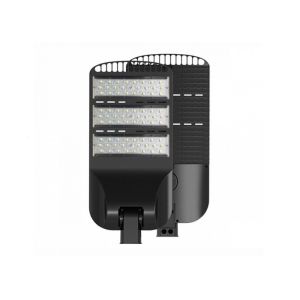

1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect
lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead
5.Light body is made of good quality aluminum alloy with painting
or anodic treatment on surface, exiguity and unique design,
excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>50000hrs
8. High brightness, low consumption, green for environment
9. Save 80% more energy compared with traditional lighting fixtures
10. Built-in LED driver with IC ensure stability of light, it can
work efficiently under
11. AC85-265V in different countries and regions.AC12/24V led
driver is also available
12. IP65 waterproof, outdoor lighting available.

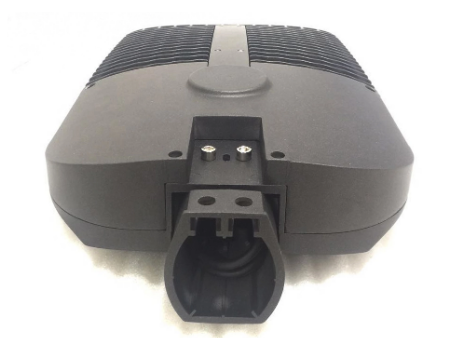

Connect to the pole when install the lamp
Lamp tail adopt 60mm diameter, fitness for all the market
throughout the world.
Install angle adjustable from 90-30 degree.
AC electrical wiring length 90 mm for standard product, If special
length sure its available, just negotiate more.
Back hood hole could be drilled, for extend function eg: NEMA 7 pin
socket, daylight sensor socket.
NEMA 7 pin Socket
The most popular extend function of the smart dimming street light
in this day and age.
Connect the 0-10v driver, Meanwell brand or Inventronics or Sosen
optionable By control the LORA gataway to control each LORA master
on the NEMA socket.
The way of Smart lighting system
LORA Gateway dimming system diameter
In order to make it compatible with your market LORA gataway, we
suggest you take the LORA knobs and LORA master from your local
supplier.Of course if you wanna take the system from us here is
warmly welcomed. contact Pure for more details.
Optical daylight sensor 3 pin introduction
When the sunshine getting weak in dusk, when the ambient surround
lux lower than 10 lux (or by customer special indirection), the
light turn on automatically;After a night's light up work, then the
dawn comes, when the surround lux higher than 30 lux (or by
customer special indirection),
the light turn off automatically.
Advantages as below:
1) 160-170lm/w on the Luminaire,black polish shining housing,IP66
rated.
2) Independent model design, 30w/ 50w/ 100w/ 120w/ 150w available.
3) Lumileds 5050 LEDs inside,plus Meanwell HLG driver,5 years
warranty.
4) Compatible with dimmable type, photocell sensor and connect
solar power.
Quality Warranty:
Quality guarantee is based on storing,installing,operating and
maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing
inappropriately,breaking the operating rules,and leading to the
products damaging.
Our company will maintain the right to either repair,parts
replacing,or products exchange during the quality warranty period.
FAQ:
1. May I have a sample for the light please?
---Sure,we welcome sample test.
2. How many watts does this type provide?
---30w, 40w,50w, 60w,80w.100w,120w,150w.180w
3. Which shipping way do you have?
---DHL, FEDEX, UPS and TNT are all support. By sea or by air can be
available based on your request.
4. What is the delivery time?
---Normally, 5-7 days for sample, 15-20 days for bulk order. If on
special condition, the delivery time can be discussed.
