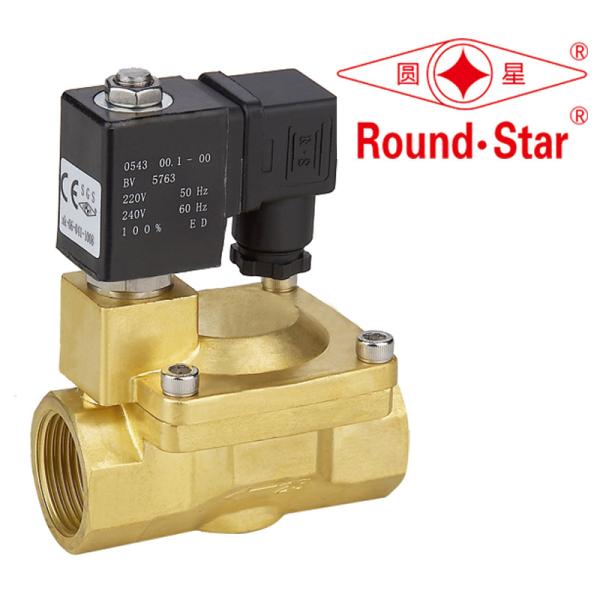

    1 Inch Automatic Bistable Latching Solenoid Valve Pilot Operated Brass

    Ask Lasest Price
    Brand Name : Round Star
    Model Number : YSZ
    Certification : CE/ROHS/TUV/FDA
    Price : negotiation
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 4,000pcs per month
    Delivery Time : 10 working days after received your payment
    • Product Details
    • Company Profile

    1 Inch Automatic Bistable Latching Solenoid Valve Pilot Operated Brass

    asco bistable latching solenoid valve one inch brass material 12V 24V 220V 230V 240V


    The valve actuator is industrial process automation control system used. It can automatically turn on or off after receiving the electric signal, the pipeline fluid medium is carried off two automatic control and remote control. This series solenoid valve can be widely used in textile, printing, chemicals, plastics, rubber, pharmaceutical, food, building materials, machinery, electronics, surface treatment and research departments as well as bathrooms, cafeteria, air conditioning, automatic control system


    working medium:liquid,water,air,light oil(viscosity≤20cst)

    medium temperature:-5 ~ 80℃

    working pressure:0.3~16bar (details see specification table)

    working type:DN1.5~4 direct acting DN15~50 pilot operated

    valvebody material: brass SS316 PA66

    sealing material:NBR(-5~80℃)

    interface:G thread NPT thread

    working voltage:DC6V DC9V DC12V DC24V

    4W 6W 12W IP65 H degree

    Options:

    sealing material:EPDM(-10~130℃) VITON(-10~120℃)


    YSZ-series pilot operated solenoid valve specification table


    model

    orifice size

    ( mm )

    Interface sizeCvworking pressure(bar)

    length×width×height

    ( mm )

    weight(Kg)
    airWater liquidbrassSSPA66
    YSZ - 15141/2"3.50.3~160.3~1266×48×1120.70.6
    YSZ - 20203/4"7.60.3~160.3~1275×58×1180.80.7
    YSZ - 25251"120.3~160.3~1296×69×1251.31.2
    YSZ - 323211/4"220.3~160.3~10131×96×1252.82.8
    YSZ - 404011/2"300.3~160.3~10131×96×1502.62.6
    YSZ - 50502"480.3~160.3~10168×128×1653.93.6
    YSZ–15SL151/2"3.50.3~70.3~785×73×1260.6
    YSZ–20SL203/4"7.60.3~70.3~790×73×1280.6
    YSZ–25SL251"120.3~70.3~7125×90×1480.6
    YSZ–32SL3211/4"220.3~70.3~7150×128×1730.8
    YSZ–40SL4011/2"300.3~70.3~7152×128×1760.9
    YSZ–50SL502"480.3~70.3~7170×140×1901.1
