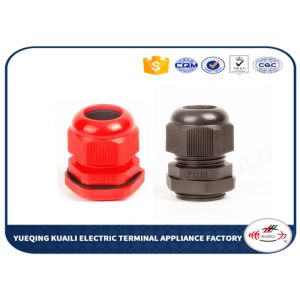

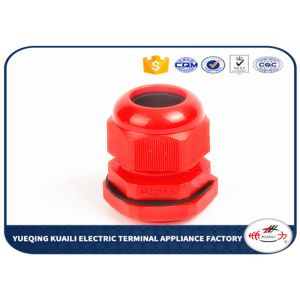

Factory Supply M16 Ip68 Waterproof Nylon Plastic 4-8mm Dia Cable
Glands Connectors
Material:
Nylon 66, 94V-2, certificated by UL, tight ring is made of rubber
Feature:
1, Special designation, good strengthsile and none damage to
electrical machine
2 , Not need to disengage the fix terminal, cable can be inserted
through directly then tighten easy and save time
Application:
widely used for cable wire fixing in the field of machinery control
box, distribution plate, machine and electrical, etc.
We is specialied in produce nylon cable tie ,cable marker ,spiral
wrapping bands ,expandable plugs,cable tie mount.clips. cable gland
etc. our factory established in 2001 ,it has more than 15 years
experience to produce the plastic products .we have more than 40
set machines,our factory insists on the quality policy of science
and technology is the base ,Superexcellent quality is the most
important aim .it would greatly appreciate the chance to convince
you of our quality, ability and potential.
Specification:
| Thread | Cable Range (mm) | Thread Length (mm) | Body Height(mm) | Spanner Size (mm) | Thread O.D(mm) | Panel Mounting Hole (mm) | Packing (Pcs/Bag) |
| M12x1.5 | 3-6.5 | 15 | 22 | 15/16 | 12 | 12-12.3 | 100 |
| M12x1.5 | 2-5 | 15 | 22 | 15/16 | 12 | 12-12.3 | 100 |
| M16x1.5 | 4-8 | 15 | 26 | 19 | 16 | 16-16.3 | 100 |
| M16x1.5 | 2-6 | 15 | 26 | 19 | 16 | 16-16.3 | 100 |
| M16x1.5 | 5-10 | 15 | 27 | 22 | 16 | 16-16.3 | 100 |
| M16x1.5 | 3-7 | 15 | 27 | 22 | 16 | 16-16.3 | 100 |
| M18x1.5 | 5-10 | 15 | 27 | 22 | 18 | 18-18.3 | 100 |
| M18x1.5 | 3-7 | 15 | 27 | 22 | 18 | 18-18.3 | 100 |
| M20x1.5 | 6-12 | 15 | 28 | 24 | 20 | 20-20.3 | 100 |
| M20x1.5 | 5-9 | 15 | 28 | 24 | 20 | 20-20.3 | 100 |
| M20x1.5 | 10-14 | 15 | 30 | 27 | 20 | 20-20.3 | 100 |
| M20x1.5 | 7-12 | 15 | 30 | 27 | 20 | 20-20.3 | 100 |
| M22x1.5 | 10-14 | 15 | 30 | 27 | 22 | 22-22.3 | 100 |
| M22x1.5 | 7-12 | 15 | 30 | 27 | 22 | 22-22.3 | 100 |
| M25x1.5 | 13-18 | 15 | 35 | 33 | 25 | 25-25.3 | 100 |
| M25x1.5 | 9-16 | 15 | 35 | 33 | 25 | 25-25.3 | 100 |
| M32x1.5 | 18-25 | 15 | 40 | 41/42 | 32 | 32-32.3 | 50 |
| M32x1.5 | 13-20 | 15 | 40 | 41/42 | 32 | 32-32.3 | 50 |
| M40x1.5 | 19-28 | 18 | 43 | 45/46 | 40 | 40-40.3 | 20 |
| M40x1.5 | 15-23 | 18 | 43 | 45/46 | 40 | 40-40.3 | 20 |
| M40x1.5 | 22-32 | 18 | 48 | 52/53 | 40 | 40-40.3 | 20 |
| M40x1.5 | 20-26 | 18 | 48 | 52/53 | 40 | 40-40.3 | 20 |
| M50x1.5 | 27-35 | 18 | 48 | 55/56 | 50 | 50-50.3 | 20 |
| M50x1.5 | 22-29 | 18 | 48 | 55/56 | 50 | 50-50.3 | 20 |
| M50x1.5 | 32-38 | 18 | 49 | 60/61 | 50 | 50-50.3 | 2 |
| M50x1.5 | 25-31 | 18 | 49 | 60/61 | 50 | 50-50.3 | 20 |
| M63x1.5 | 37-44 | 18 | 50 | 64 | 63 | 63-63.3 | 20 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
about 30 days if the goods are not in stock, it is according to
quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Add: No.78 Kaifa Road.Electrial Industial zone,Of North
Baixinag Town Yueqing Zhengjiang China
