PVI PD035OX1 tft lcd screen Panel 3.5 inch with 84.03×65.24×3.73 mm Outline

    Buy cheap PVI PD035OX1 tft lcd screen Panel 3.5 inch with 84.03×65.24×3.73 mm Outline from wholesalers

    Buy cheap PVI PD035OX1 tft lcd screen Panel 3.5 inch with 84.03×65.24×3.73 mm Outline from wholesalers
    • Buy cheap PVI PD035OX1 tft lcd screen Panel 3.5 inch with 84.03×65.24×3.73 mm Outline from wholesalers
    • Buy cheap PVI PD035OX1 tft lcd screen Panel 3.5 inch with 84.03×65.24×3.73 mm Outline from wholesalers

    PVI PD035OX1 tft lcd screen Panel 3.5 inch with 84.03×65.24×3.73 mm Outline

    Ask Lasest Price
    Brand Name : PVI
    Model Number : PD035OX1
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    PVI PD035OX1 tft lcd screen Panel 3.5 inch with 84.03×65.24×3.73 mm Outline

    PVI PD035OX1 LCD Panel Normally White 3.5 inch with 84.03×65.24×3.73 mm Outline

    What is Our Advantage?

    1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.

    6. Reasonable price.

    FAQ
    1. Q: Where can I get the price?
    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
    2. Q: How can I get a sample to check your quality?
    A: After price confirmation, you can require for samples to check our quality.
    3. Q: What about the lead time for mass production?
    A: It depends on your order quantity and the season you place the order.
    4. Q: What are your terms of payment?
    A: We accept T/T, Western Union, MoneyGram, PayPal.

    PD035OX1 Detailed Product Description

    Panel Brand :PVI
    Panel Model :PD035OX1
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :3.5 inch
    Resolution :320(RGB)×234
    Display Mode :TN, Normally White, Transmissive
    Active Area :71.6×52.65 mm
    Outline :84.03×65.24×3.73 mm
    Surface :Antiglare
    Brightness :250 cd/m2 (Typ.)
    Contrast Ratio :400:1 (Typ.)
    Display Colors :16.7M (8-bit)
    Response Time :15/25 (Typ.)(Tr/Td)
    Viewing Angle :50/50/15/35 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Signal Interface :Digital RGB (8/24-bit), CCIR601/656 , 60 pins
    Input Voltage :3.3/3.3/5.0/15/-15V (Typ.)(VCC/VDD1/VDD2/VGH/VEE)

    PVI PD035OX1 Mechanical Features

    Panel Size :3.5 inch
    Dot Resolution :320(RGB)×234
    Pixel Configuration :RGB Delta
    Pixel Density :113 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0746×0.225 mm (H×V)
    Weight :42.0±5.0g
    Surface :Antiglare
    Active Area :71.6×52.65 mm (H×V)
    Bezel Area :74.6×55.65 mm (H×V)
    Outline Dimension :84.03×65.24 mm (H×V)
    Outline Depth :3.43±0.3 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without


    Here comes our other LCD panels stock for your easy reference:
    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    EK014BS012PDI1.44"128×96
    EK014BS011PDI1.44"128×96
    EG020BS012PDI2.0"200×96
    EG020BS011PDI2.0"200×96
    EG020AS013PDI2.0"200×96
    EG020AS012PDI2.0"200×96
    EM027BS014PDI2.7"264×176

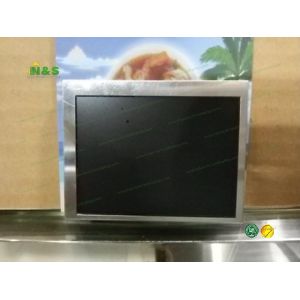

    PD035OX1 Picture
