    Sliding Stainless Steel Bushing , PTFE Self - Lubrication Multilayer Composite Bearings

    Ask Lasest Price
    Brand Name : TOB PTFE Self-Lubrication Bearings
    Certification : ISO 16949
    Price : negotiated
    Payment Terms : T/T
    Supply Ability : negotiated
    Delivery Time : negotiated
    • Product Details
    • Company Profile

    Sliding Stainless Steel Bushing , PTFE Self - Lubrication Multilayer Composite Bearings


    Sliding Bushing, Stainless Steel Bushing , PTFE Self-Lubrication Multilayer Composite Bearings


    Stainless steel backing bushing we also supply other kinds of oilless bushings. And sliding bearings in good quality!. Sf-1s/sf-1sw stainless steel self-lubricating bearing, du bushing, oil-less bearing, slide bearing. Sf-1s (sf-1sw, without lead pb) is special designed for corrodible environments. It is made of triple layer composites:. Stainless steel as base, porous bronze interlayer and ptfe surface layer. The products are widely used in machinery industry, such as the corrosion resistant part in dyeing machinery and ocean industry, etc. Features:. 1. Well self-lubricating. 2. Anti-wear and anti-corrosion. 3. Able to be used in strong acid corrodible environments. 4. Low vibration, low noise. Compact and light. 5. Working temperature range: -195. O. C~+280. O. C. 6. Size from 0606 to 150100. Specifications:. Max. Dynamic loading capacity : 140n/mm. 2. Max. Static loading capacity : 250n/mm. 2. Max. Linear speed(oil) : 4.5m/s. Friction coefficient : 0.04~0.20.


    Physical and Mechanical Performance

    Performance IndexDataPerformance IndexData
    Max. LoadStatic Load250N/mm²Friction CoefficientGrease Lubrication0.08~0.20
    Dynamic Load140N/mm²Oil Lubrication0.02~0.07
    Oscillation Load60N/mm²Mating AxisHardness>120 HB
    Linear VelocityGrease Lubrication2.5 m/sRoughnessRa=0.4~1.25
    Oil Lubrication5 m/sWorking Temperature-200~+280℃
    Max. PV valueGrease Lubrication3.6 N/mm²·m/sHeat-conducting Coefficient40 W/(m*k)
    Oil Lubrication50 N/mm²·m/sHeat-expansion Coefficient (Axial)16*10^-6k

    Physical and Mechanical Performance

    Normally, the surface polymer is chemical-erosion resistant quality. However it can be eroded by fused alkali metal and high temperature fluorine compounds. Stainless steel back is also chemical erosion preventive.

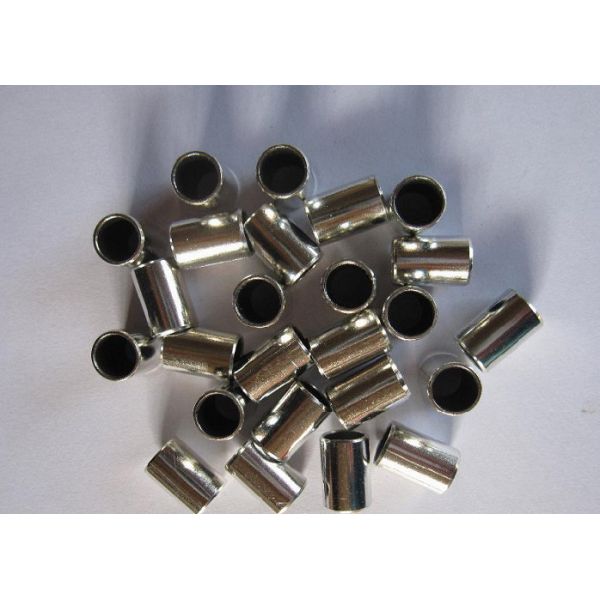

    Quality Sliding  Stainless Steel Bushing , PTFE Self - Lubrication Multilayer Composite Bearings for sale
