Heating High Speed Mixer/ PVC Mixer Machine/ Plastic Color Mixing
Machine
SRL series high speed mixer:
1. stainless steel blade
2. easy operation
3. high output and low noise
4. CE certificate
Plastic mixing unit for powder ,granules ,liquid
PVC mixing machine plastic mixing
PVC mixer plastic raw material mixer

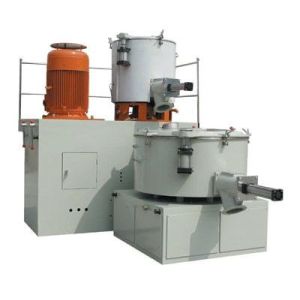

Mainly composed of high speed hot mixer,cold mixer,and electric
control components etc.It is widely used in drying mixing, blending
and cooling the powder,liquid,granule of
plastics,rubber,dyestuffs,foodstuffs,chemicals, CaCo3etc.
Features:
1. Stainless steel mixing bucket,ensure year-round and smooth;
2. Mixture stirred unique design, a short time to achieve uniform
mixing;
3. Easy to clean and absolutely no pollution;
4. Security switches attached to the cover, safe;
5. 360-degree rotation axis and the slurry mixing and improve the
mixing efficiency.
PVC dry powder mixing plastic powder mixer machine
| Item No. | Total Volume(L) | Effective Volume(L) | Screw Rotate Speed(r/m) | Motor Power (kw) | Water Demand | Discharging Method | Meas.(mm) | Weight |
| SRL-Z50/100 | 50/100 | 32/75 | 750/1500/180 | 7/11/5 .5 | 3t/h | Pneumatics, Hand work | 2300/1800/1900 | 2.8T |
| SRL-Z100/200 | 100/200 | 75/160 | 650/1300/180 | 14/22/7.5 | 3.5t/h | 2500/2000/2200 | 3T |
| SRL-Z200/500 | 200/500 | 150/320 | 475/950/130 | 30/42/11 | 5t/h | 4580/2240/2470 | 3.5T |
| SRL-Z300/600 | 300/600 | 200/360 | 475/950/130 | 40/55/11 | 3-8t/h | 4580/2240/2500 | 3.8T |
| SRL-Z300/1000B | 300/1000 | 200/640 | 475/950/50 | 40/55/11 | 5.8t/h | Pneumatics | 4600/3000/4050 | 4.2T |
| SRL-Z500/ 1000A | 500/1000 | 375/650 | 430/860/60 | 47/67/18.5 | 5.8t/h | 4600/3000/4050 | 5.8T |
| SRL-Z500/1000B | 100/1000 | 375/640 | 430/860/50 | 55/75/15 | 6.8t/h | 4600/3000/4050 | 7.8T |
| SRL-Z800/1600B | 500/1600 | 375/1200 | 450/860/60 | 55/75/18.5 | 10t/h | 4600/3000/4050 | 7.3T |
| SRL-Z800/ 1600A | 800/1600 | 600/1024 | 500/50 | 75/30 | 10t/h | 6230/4230/4480 | 8T |
| SRL-Z800/2000B | 800/2000 | 600/1500 | 370/740 | 83/110/30 | 12t/h | 4850/3860/6550 | 7.3T
|
