Complete set PVC Wall Panel Extrusion Line Manufacturer
Specification of pvc wall panel making machine :

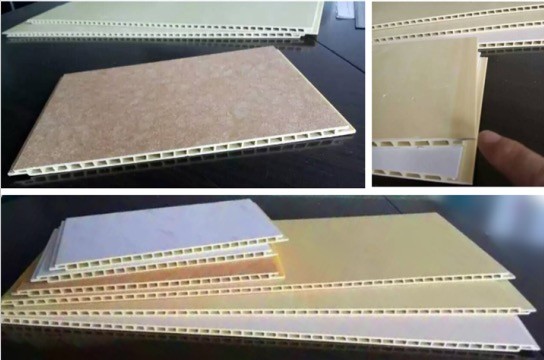

The pvc wall panel making machine is used to produce the pvc
ceiling ,pvc wall panel.the width of the panels can
be:160mm,200mm,250mm,300mm,400mm,500mm,600mm.By different
capacity,you can choose the suitable machine.
We can provide the machine with turnkey solutions for you,including
raw material,testing and installation,training staff,etc.
Advantages of pvc ceiling panel extrusion line:
1,speed controlled by inverter, saving power and easy to adjust
speed
2,temperature controlled by Omron intelligent control, fluctuation
self adjusting
3,lower power consumption: lowest total production line consumption
25kw/h
4,Economical price, suitable for large scale investment.
The Full Laminating Line includes the following machines:
1. Automatic Board Loading machine
2. PVC film coating and laminating machine
3. Automatic board over turner
4. Aluminum foil coating laminating machine
5. Cutting machine
6. Edge wrapping machine
7. Packing machine
8. Finished board stacking
Flowchart of full line (some of the parts are optional)
Automatic board feeding--predusting--coating--drying and
conveying--aluminium foil unwinding--pneumatic lamination for film
and gypsum board--cutting(manual, automatic)-conveying --automatic
overturn--coating--drying and conveying--PVC film
unwinding--pneumatic lamination for film and gypsum
board--cutting(manual, automatic)--drying and conveying--lengthwise
cutting(dedusting)--horizontal cutting(dedusting)--belt conveyor
ouput--autolift stacking conveying--edge wrapping--stretch
packing--conveying--lift(finished products stacking)
SPECIFICATIONS:
| MODEL | PROFILE SIZE (mm) | EXTRUDER MODEL | MOTOR POWER(kw) |
| LB-108 | 108 | SJZ51/105 | 18.5AC |
| LB-180 | 180 | SJZ55/110 | 22 AC |
| LB-300 | 300 | SJZ65/132 | 37 AC |
| LB-600 | 600 | SJZ80/156 | 55 AC |
| LB-800 | 800 | SJZ80/156 | 55 AC |
| LB-1240 | 1240 | SJZ92/188 | 110 D
|
