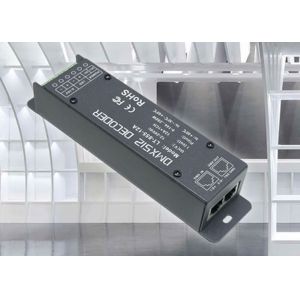

1CH 12A 0 ~ 10V Dimming CV LED DMX Decoder Controller with RJ45 DMX512 Socket

Ask Lasest Price
Brand Name :	LT-Series
Model Number :	CL-LT-855-12A
Certification :	FCC, CE, ROHS, ISO 9001 : 2008
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100000pcs per month
Delivery Time :	3~12 days

Add to Cart

Product Details
Company Profile

1CH 12A 0 ~ 10V Dimming CV LED DMX Decoder Controller with RJ45 DMX512 Socket

CL-LT-855-12A 12~24VDC 1Channel Max 12A Output 0 ~ 10V Dimming CV LED DMX-PWM Decoder Controller with RJ45 DMX512 Socket

DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console,it can realize 0-100% brightness or various changing effect. It is widely used forsingle color LED lights Control.

16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lighting stroke and ESD static electricity.
RJ45 interface for DMX signal input/output: Use RJ45 cables for connection between DMX console and decoder, connection between decoders. It is very Convenient for cable wiring.

Family Products Comparison:

Model	CL-LT-855-12A	CL-LT-853-6A	CL-LT-858-5A
Input signal	DMX512	DMX512	DMX512
Input power	DC12V～DC24V	DC12V~DC24V	DC12V～DC24V
Max load current	12A x1CH+0-10V x1CH	6A ×3CH Max 18A	5A ×4CH Max 20A
Max output power	144W/288W(12V/24V)	216W/432W(12V/24V)	240W/480W(12V/24V)
DMX512 socket	RJ45	RJ45	RJ45
Dimming range	0 ~100%	0 ~100%	0～100%
Working temperature	-30℃～65℃	-30℃～65℃	-30℃～65℃
Dimension	L175×W42×H33(mm)	L175×W42×H33(mm)	L175×W42×H33(mm)
Package Size	L183×W48×H41(mm)	L183×W48×H41(mm)	L183×W48×H41(mm)
Weight (G.W)	310g	310g	310g

Product Size (mm):

* An amplifier(Also named DMX booster or splitter) is needed when more than 32 decoders are connected, signal amplification should not be more than 5 times continuously.

* If the recoil effect occurs because of longer signal line or bad line quality , please try to connect 0.25W 90-120Ω terminal resistor at the end of each line.
