    Wide Range Ultrasonic Flaw Detector MFD500B With Printer And USB Port Connect To PC

    Ask Lasest Price
    Brand Name : MITECH
    Model Number : MFD500B
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500 sets per week
    Delivery Time : 3-5 work days
    Certification : CE/GOST/ISO9001
    • Product Details
    • Company Profile

    Wide Range Ultrasonic Flaw Detector MFD500B With Printer And USB Port Connect To PC

    Mitech Wide-range Ultrasonic Flaw Detector MFD500B with printer and USB port connect to PC


    Product Overview

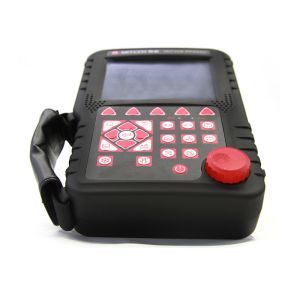

    The MFD500B is an advanced digital ultrasonic flaw detector featuring full digital TFT LCD and a host of new features to meet challenging inspection requirements. Combined with powerful flaw detection and measurement capabilities, extensive data storage, it is capable for transfer detailed inspection data to the PC via its high-speed USB port.

    The instrument incorporates many advanced signal processing features including a 10MHz RF bandwidth to permit testing of thin materials, narrow band filters to improve signal to noise in high gain applications, a spike pulse for applications required higher frequencies and a adjustable square wave pulse to optimize penetration on thick or highly attenuating materials.

    The instrument can be widely used in locating and sizing hidden cracks, voids, disbands and similar discontinuities in welds, forgings, billets, axles, shafts, tanks, pressure vessels, turbines and structural components.


    Features of the Instrument

    The instrument extends the performance and range of applications that are capable of being satisfied by a portable instrument. The quality, portability, durability, and dependability that you have come to expect from the popular Mitech MFD Series instruments remain.

    ① Leading Technology including full English menu, master-slave, shortcut key and rotary key design, it is easy for operation.

    ② Adopted with full digital TFT LCD, clear screen brightness, capable for choosing the background color, waveform color and menu color. Adjustable brightness freely, suitable for operating under different environments.

    High performance security battery module is easy to assemble and disassemble, the instrument can work continuously more than eight hours.


    Standard Configuration

    No.ItemQtyRemarks

    Standard

    config.

    1Main unit1with full digital TFT LCD Display
    2Straight Beam Probe14 MHz, Φ10
    3Angle Beam Probe14 MHz, 8 mm×9 mm, 60°
    4Probe Cable1Q9-C5,or optional C9- C5
    5Battery Module18.8 amp hour (MB-02)
    6Power Adapter1
    7Supporting pillar1
    8Attached files1
    9Datapro Software1
    10USB Cable1
    11Power Cable1
    12ABS Case1
    Optional config.1Protective Cover for Main Unit
    2Dual-crystal Straight Probe
