PVC Coated With Green Color Welded Wire Mesh For Security Fence
Description of Welded Wire Mesh
It is made of high quality of galvanized iron wire, to be coated
with PVC powder by advanced automatic equipments. The plastic
coating layer is even, strong adhesiveness and bright luster with
good anti-corrosive prosperity.
Material: Galvanized iron wire, low carbon steel wire, PVC coated
wire, Stainless steel wire
Opening: 1/4"x1/4" to 6"x6"
Wire diameter: 0.45mm-4.5mm
Width: 1m,1.22m,1.524m,1.82m,2.0m etc., custom require available at
request.
Roll length: 15m,30m,50m etc,. custom require available at request.
| Specification List of Welded Wire Mesh: |
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| PVC Coated Welded Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/2'' × 1/2'' | 12.7mm ×12.7mm | 16,17,18,19,20,21 |
| 3/4'' × 3/4'' | 19mm × 19mm | 16,17,18,19,20,21 |
| 1'' × 1'' | 25.4mm × 25.4mm | 15,16,17,18,19,20 |
Technical Note: 1.Standard roll length: 30m, width:0.5m to 1.8m 2.Special sizes availabe at request 3.Packing:In waterproot paper in rolls. Custom packing available at
request. |
Welded Type
Electro galvanized before welding wire mesh
Electro galvanized before welding wire mesh
Hot-dipped galvanized before welding wire mesh
Hot-dipped galvanized before welding wire mesh
Iron/galvanized wire+pvc coated
Advantage
Wear-resistant, high strength and long service life,
unity-structure, not curly, easy to use, acid-resistant ,
alkali-resistant, corrosion-resistant, heat-resistant .
Uses
Welded wire mesh is used in industry and agriculture building,
transportation and mining for all such
purposes as poultry houses, egg baskets, runway enclosures,
draining rack, fruit drying screen, fence.

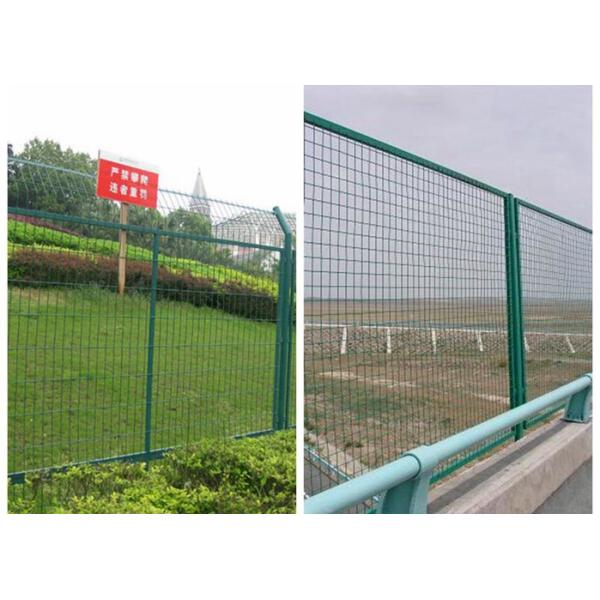

Welded wire mesh can be processed into wire mesh fence which can be
used in Garden, yard, ground, railway, highway.
