    IP68 Version Watertight Non-Armoured Insulated Straight Electrical Cable Glands with G Screw Thread

    Ask Lasest Price
    Brand Name : Sino Cable Gland Factory
    Model Number : NCG Series
    Certification : CE, ROHS, PAHS, REACH, SGS, IP68
    Price : very competitive prices
    Payment Terms : T/T, L/C, Western union
    Supply Ability : 5000000pcs / month
    Delivery Time : normally 8-10 days
    • Product Details
    • Company Profile

    IP68 Version Watertight Non-Armoured Insulated Straight Electrical Cable Glands with G Screw Thread

    Product name:
    IP68 Version Watertight Non-Armoured Insulated Straight Electrical Cable Glands with G Screw Thread
    Description:

    Our Cable Glands are manufactured from high quality materials including Nylon, Nitrile, EPDM, Viton, FKM Rubber. Produced in a variety of thread sizes including Metric, PG, NPT, G, BSC and BSP, these cable glands are supplied with matching locknuts, are available in a range of RAL colours including Black, Grey, White, Blue, Red, Yellow & Green.


    These Cable Sealing Glands are used to prevent ingress of water, they are an excellent cable management product with an IP68 waterproof rating, simultaneously protecting cables and preventing ingress.


    Such Insulated Cable Glands are popularly used for the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
    Our advantages:
    (1) Direct factory who sell products at factory prices.
    (2) All our products are friendly to earth (green products).
    (3) High quality ensures long service life for indoor and outdoor applications.
    (4) All our glands reach IP68 liquid tight protection.
    (5) Timely delivery and good service are our principle.
    (6) Free samples available.
    (7) Different cable glands can be customized as per customer's request.
    (8) OEM services can be provided.
    About us:
    We are one of the most professional manufacturer of Cable Glands in China. Currently we manufacture and export Nylon Cable Glands & Metal Cable Glands with PG, Metric, NPT, G, BSC & BSP Threads. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!
    Descriptions:
    Brand name:Sino Cable Gland Factory
    Place of origin:Zhejiang, China
    Product name:IP68 Version Watertight Non-Armoured Insulated Straight Electrical Cable Glands with G Screw Thread
    Sizes available:G1/4", G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2"
    Raw material:UL-approved new Polyamide 66, 94V-2 for Sealing Nut, Locknut & Body (contact us for 94V-0 material)
    NBR rubber for Seals & Washers
    Standard colors:Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request)
    Main advantages:Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, the anti-vibration sealing nut making a "click" sound provides anti-vibration mechanism and firmly holds and protects cables from becoming loose during the operation. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
    Certifications:CE, ROHS, PAHS, REACH, SGS, IP68
    IP protection:IP68 (when the cable diameter is within the clamping range and assemble the Washer)
    Thread lengths:Short thread and long thread are available
    Thread system:According to ISO228-1/JIS B 0202
    Operation temp.:Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
    Quality grade:High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications
    OEM service:Yes, available
    Supply capability:3,000,000 pieces per month
    Minimum quantity:500 pieces
    Samples available:Free samples available upon request
    Delivery time:Normally 5-7 days after confirmation of orders
    Payment terms:T/T in advance, Western Union, L/C at sight
    Shipment terms:EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
    Export packing:100 or 50 pieces / bag, 100pieces /color box, special packing can be customized as requested

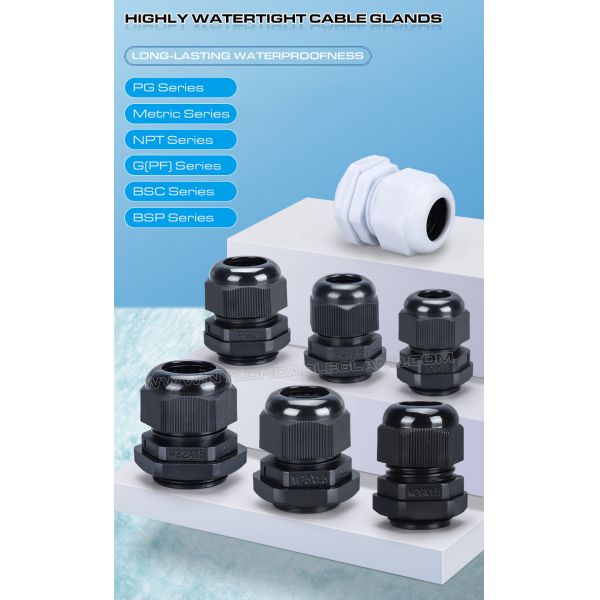

    Product pictures:
    IP68 Version Watertight Non-Armoured Insulated Straight Electrical Cable Glands with G Screw Thread




    Quality IP68 Version Watertight Non-Armoured Insulated Straight Electrical Cable Glands with G Screw Thread for sale
