Glass Watch Window Walk In Chamber Monitoring System Environment
Test Chamber
Walk In Chamber Ovreview:
This walk in chamber design is humanized, can see in the box inside the test condition
through the glass window.and it is easy to operate with touch
screen system for 32 Bit Control And Monitoring System.
walk in chamber is a environment aging chamber with temperature and humidity
testing.walk in chamber can accurately simulate low-temperature,
high temperature, high temperature and humidity, low temperature
and humidity and other complex natural environment, applicable to
plastics, electronics, food, clothing, vehicles, metals, chemicals,
building materials and other industries in the reliability of
product testing.
Walk In Chamber Application Test Items:
walk in chamber main for testing the performance of materials in a variety of
environments tempearetures heat resistance test , cold resistance
test , dry resistance test, humidity resistance test.
Walk In Chamber Application Metarial or Industry:
walk in chamber suitable for electronics, electrical appliances,
mobile phones, communications, instrumentation, vehicles, plastic
products, metal, food, chemical, building materials, medical,
aerospace and other products in different temperature and humidity
environment quality testing.
Test Standard(including but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS,
IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.
Specifications:
| Sr No | Specification | Hd-e705-7-1 |
| 1 | Temperature Range | -50c To +100c |
| 2 | Humidity Range | 40% To 98% Rh |
| 3 | Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 Mm |
| 4 | Dimension (External) (w x d x h) | 2850 x 1700 x 3200 Mm |
| 5 | Ramp | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
| 6 | Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
| 7 | Interior Walls | Stainless Steel 304 |
| 8 | Exterior Walls | Cold Rolled Stell Plate With Baking Finish |
| 9 | Temperature & Humidity Measurement And Controller | 32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
| 10 | Viewing Window | Multi Pane Glass Window Size |
| 11 | Port Holes | 50 Mm Diameter For Wire Routing |
| 12 | Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
| 13 | Sound Pressure Level | <72db (a) |
| 14 | Condenser Cooling | Water Cooled |
Cooling system:
1) Adopt Tecumseh compressor.
2) Refrigerant: Non-fluorine environmental protection refrigerant.
3) Condenser: Water-cooled type condenser
4) Heating, cooling and humidity system are independently which can
improve efficiency and decrease testing cost.
5) Air circulation system: Uniform the distribution of temperature
in inner chamber.

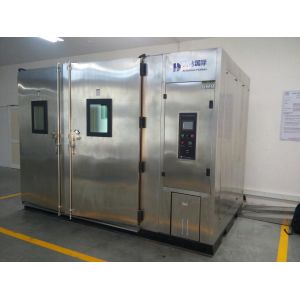

Chamber Pictures:
