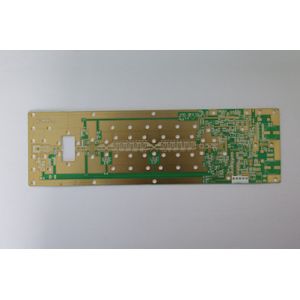

High Frequency Circuit Rogers4003C PCB Board Prototype 0.2MM RF 1oz Copper Board

High Frequency Circuit Design Rogers4003C PCB 0.2MM RF Design 1oz Copper Board

Key specifications/special features:
Rogers PCB
Rogers 4350B, Roger3003, Rogers4003,Roger 5880 and more material on stock
PCB thickness: 0.2-2mm+/-10%
Final copper: 0.5-10oz
Min hole: 0.2mm
Min line width/space: 4/4mil
Min hole copper: 20μm/25μm
Solder mask: green/blue/red/black/gray/white
Legend: white/black/yellow
Surface: OSP/HAL lead-free/immersion gold/immersion tin/
immersion silver/flash gold/hard gold
Outline: rout and score/V-cut
E-test: 100%
Certificates: UL, SGS, RoHS Directive-compliant, ISO
Files: Gerber Protel DXP Auto CAD PADs eagle
Testing: flying probe test, E-test, X-ray Inspection, AOI

Key Specifications/Special Features:

Available substrates:
RO4350B RO4003C TLX-8 (TACONIC) F4B Woven Glass-Reinforced PTFE
4mil(0.1mm) 8mil (0.203mm) 20mil(0.5mm)
10mil(0.254mm) 12mil(0.3mm) 30mil(0.762mm)
13.3mil(0.338mm) 20mil(0.508mm) 40mil(1.0mm)
20mil (0.508mm) 32mil(0.813mm)
30mil(0.762mm) 60mil(1.524mm)
60mil(1.524mm)

Introduction:
Rogers high frequency pcb widely used in the area of high technologies like communication device,
Electronics,Aerospace,Military industry and so on. we have accumulated abandunt experiences
in the line of high frequency microwave business for which widely apply to power divider,combiner,
power amplifier,line amplifier,base station,RF antena,4G antena etc.

Sufficient stock:
We have sufficient rogers material raw as follow:RO4003C,RO4350B,RO4360,RO4533,RO4535,RO4730,
RO4232,RO4233,RO3003,RO3006,RO3010,RO3035,RO3203,RO3206,
RO3210,RO3730,RO5780,RO5880,RO6002,RO3202,RO6006,
Frequently-used is 4003C,4350B,5880
So we can do pcb circuit board with your detail requirements in the case of you send us gerber files or any other files

High frequency:

Advantage Highlights

• Specialized in 2- to 32-layer PCB
• ISO 9001-, ISO 14001- and ISO/TS 16949-certified
• Products are UL- and RoHS-certified
• Partner for over 2000 small- and medium-scale customers
• Two factory bases totaling 22,000 square meters
• Less than 12-hours quick response to inquiries
• Widely acclaimed and satisfying services
• Over 66% of PCBs are exported to international markets

Xinchenger Electronics co.,Ltd established in 2009,we have committed ourselves to manufacturing various of printed circuit boards.

We have accumulated abundant experiences in the line of high frequency microwave business for which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,4G antena so on and so forth. Our company's sufficient stocks of hi-frequency pcb materials such as Rogers,TACONIC,Arlon,Isola,F4B,TP-2,FR-4 (dielectric rage:2.2-16) mainly used in the area of high technologies like communication device,Electronics,Aerospace,Military industry to meet our worldwide customers with high quality. Furthermore,we also keen on helping customers shorten the period of production development and 24 hours of sample service is available.

Since the day of company foundation we continuously engaged in researching special and high precision printed circuit boards with the strong production capability of 2 to 28 layers of highly precise impedence,multi-layer blind buried,multi-layer mix-compression,high TG, copper substrate,Ceramic substrate PCB. We emphasize the significance of traning program for every single staff in the company even grass-roots employees which becomes the most competitive factors to excel from others,our company have many experienced and professional teams from management to production line,30% are highly educated among the total amount of employees,advanced engineers and senior technicians are up to 80 people.

With advanced foreign technology supports and domestic 3G/4G device manufacturer in microwave pcb field which lead our experienced hi-frequency researching team to one step ahead of the line of printed circuit board business,we are honored to obtain sound reputations over our worldwide customers on the basis of fine qulity,prompt delivery,satisfied after sales service for may years and we assure our customers that we will return the favors with more and more superior products in the near future.
