200L Household Use Pressure Heat Pipe Solar Water Heater High
Density Insulation
Product Description:
Material and Features
Inner tank material:SUS304-2B stainless steel 1.5mm thickness,food
grade, innocuity.
Outer tank material:stainless steel 0.35mm thickness,anti-rust.
Insulation layer:High density polyurethane foaming,50mm thickness.
Vacuum tube material: borosilicate glass,three target vacuum tube.
Vacuum tube QTY:20pcs.
Water tank capacity:200L
Vacuum tube size:Φ 58mm*1800mm(Length).
Bracket material:stainless steel,1.5mm thickness.
The glistening obliquity:45 degree
Hail resistance:25mm.
Wind stress:180km/h
Freeze protection:-25 degree.
Heat preservation:72-96Hours.
Solar Energy reduces your current and future energy costs.
The solar water heater will produce all the warm water, you need –
at no extra cost.
No Pollution:
Solar energy can be used to heat and power your home, but it has
almost no impact on the global climate. By comparison, electricity
generated by power plants produces carbon dioxide emissions that
scientists say pose serious threats to the environment.
Infinitely Renewable:
While nonrenewable energy sources like oil, gas and coal are
becoming increasingly scarce, the sun’s energy is limitless.
Wherever the sun shines, the solar energy can be generated.

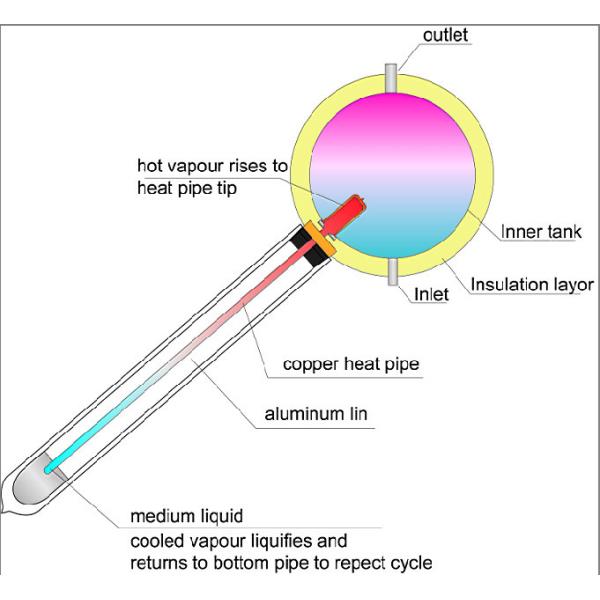

Working Principle
The vacuum tube absorb the solar ray and conduct the heat to
heat-pipe (inside) by the aluminum fin.
And the heat-pipe is connected with the copper connector which in
the water tank.
So there exists heat exchanging between the heat- pipe and copper
connector.
When the heat exchanging goes on, the water in the tank will be
heated and become hot water.
Advantage
1. Pressurized system ensure to provide strong water flow for
shower
2. This type doesn’t need any controller, circulation pump,
expansion pump. Feeder tank, it also can supplement cold water
automatic
3. We use the advanced ring-argon arc welding .ensure the high
quality.
4. Thickness of inner tank: 1.2mm-2.0mm food grade SUS304 stainless
steel
5. Even there is a tube broken; the system can work in a good
condition
6. This type is cheaper and easy install than the separated
pressurized solar water heater.
Data Sheet
| MODEL: | Solar Vacuum Tube | Aperture Area | Gross Area | Capacity | Loading Qty sets |
| Item No. | Qty /[pcs] | Size /[mm] | [M2] | [M2] | [L] | 20GP |
| 100L | 10 | Φ58 X 1800 | 0.93 | 1.60 | 100 | 72/172 |
| 150L | 15 | Φ58 X 1800 | 1.39 | 2.31 | 150 | 52/123 |
| 200L | 20 | Φ58 X 1800 | 1.86 | 3.08 | 200 | 38/92 |
| 250L | 25 | Φ58 X 1800 | 2.34 | 3.85 | 250 | 29/69 |
| 300L | 30 | Φ58 X 1800 | 2.79 | 4.63 | 300 | 25/61 |
Additional Information:
| Payment Terms | T/T |
| Minimum Order | 10 |
Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | 15 days when we get your advanced payment |
| FOB Port | Ningbo,Shanghai |
| Loading Info | shipping |
| Packing Info | exported standard cartons |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/
Taiwan, Japan & Korea, Latin America, Mainland China, Middle East,
North America, Northern Europe, Oceania, Central & Southern Asia,
Southeast Asia, Western & Southern Europe |
FAQ:
1. What is your Delivery Time?
LCL order:10days.
Full container order:15days.
2. What is your Guarantee Time?
6 years; Provide you with some accessories, they are free for you.
3. Can you accept OEM and ODM ?
YES, printing your LOGO on the product and package, it's free.
4. What is your payment term?
We accept T/T or L/C, Western Union and Paypal.
5. What is your MOQ?
4 sets
6. Low do you pack?
LCL order in plywood case
Full container order in high quality export carton
7. What is your FOB port?
We accept FOB Shanghai, Ningbo, Shenzhen, Guanagzhou, Qingdao etc.
8. What is your monthly production capacity?
1000 sets
9. What is your shipping term?
By sea/Air/Rail/Truck
10. Do you any additional services?
YES!
We offer free spares according to your order quantity. Such as
Vacuum Tube, tube holders, dusting rings, silicon rings, screws
etc.
And we can offer logo design, Products Advertising Design etc
services free.
